Husqvarna 435i - 970718014 - Clutch Cover 02

Name: Husqvarna 435i - 970718014 - Clutch Cover 02
SKU: 435i_970718014_FZ_693938_Original_20file-group
Price: 1.03 GBP
Availability: InStock

Part No. 435i_970718014_FZ_693938_Original_20file-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 435i - 970718014 - Clutch Cover 02

Description

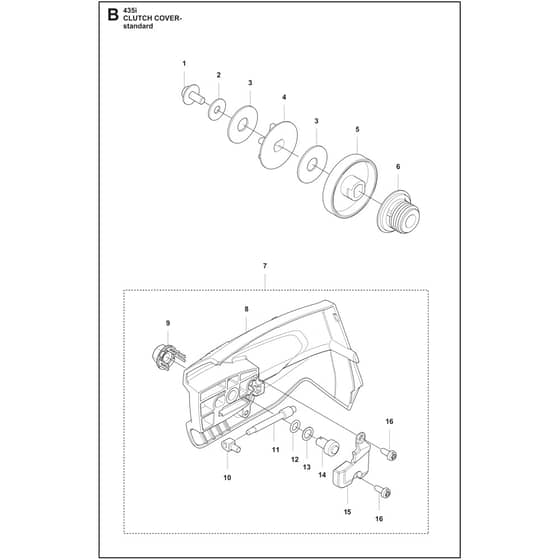

Husqvarna 435i - 970718014 - Clutch Cover - Parts Diagram

	Part No.	Details
1	HV525 75 51-05 In stock	Screw Itxscfm	£1.63 £1.36
2	HV503 23 00-35 Available to backorder	Washer	£2.47 £2.06
3	HV597 67 01-01 Available to backorder	Disc Spring	£5.92 £4.93
4	HV594 03 52-01 Available to backorder	Spur Sprocket	£13.14 £10.95
5	HV593 68 44-01 Available to backorder	Brake Drum	£7.68 £6.40
6	HV595 34 22-01 Available to backorder	Pump Pinion	£11.36 £9.47
7	HV593 05 20-02 Available to backorder	Clutch Cover Assy	£27.85 £23.21
8	HV593 05 17-02 Available to backorder	Clutch Cover	£9.46 £7.88
9	HV505 19 73-01 In stock	Nut	£4.48 £3.73
10	HV588 85 03-03 Available to backorder	Pin	£5.21 £4.34
11	HV537 39 70-01 Available to backorder	Worm Screw	£12.66 £10.55
12	HV740 48 07-02 Available to backorder	O-Ring	£3.82 £3.18
13	HV503 23 00-63 Available to backorder	Washer	£2.30 £1.92
14	HV599 72 41-01 Available to backorder	Worm Wheel	£9.20 £7.67
15	HV505 21 45-01 Available to backorder	Cover	£4.67 £3.89
16	HV526 22 18-01 Available to backorder	Screw Citxpant	£1.24 £1.03
