Husqvarna 435i - 970718014 - Clutch Cover 01

Name: Husqvarna 435i - 970718014 - Clutch Cover 01
SKU: 435i_970718014_YN_294801_Original_20file-group
Price: 1.03 GBP
Availability: InStock

Part No. 435i_970718014_YN_294801_Original_20file-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 435i - 970718014 - Clutch Cover 01

Description

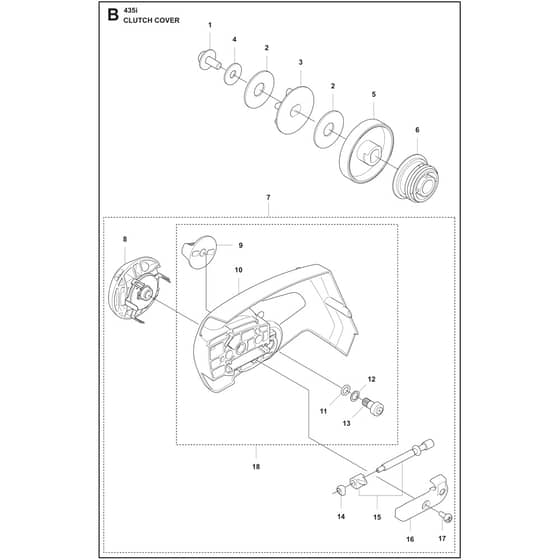

Husqvarna 435i - 970718014 - Clutch Cover - Parts Diagram

	Part No.	Details
1	HV525 75 51-05 In stock	Screw Itxscfm	£1.63 £1.36
2	HV597 67 01-01 Available to backorder	Disc Spring	£5.92 £4.93
3	HV594 03 52-01 Available to backorder	Spur Sprocket	£13.14 £10.95
4	HV503 23 00-35 Available to backorder	Washer	£2.47 £2.06
5	HV593 68 44-01 Available to backorder	Brake Drum	£7.68 £6.40
6	HV595 34 22-01 Available to backorder	Pump Pinion	£11.36 £9.47
7	HV595 31 48-01 Available to backorder	Clutch Cover Assy	£43.78 £36.48
8	HV595 31 02-01 Available to backorder	Knob Assy	£14.75 £12.29
9	HV595 83 91-01 Available to backorder	Chain Tensioner	£12.49 £10.41
10	HV595 84 56-01 Available to backorder	Clutch Cover	£20.46 £17.05
11	HV740 48 07-02 Available to backorder	O-Ring	£3.82 £3.18
12	HV503 23 00-63 Available to backorder	Washer	£2.30 £1.92
13	HV596 51 41-01 Available to backorder	Worm Wheel	£9.85 £8.21
14	HV537 01 74-01 Available to backorder	Bearing Sleeve	£5.75 £4.79
15	HV596 33 58-01 Available to backorder	Chain Tensioner	£6.49 £5.41
16	HV595 84 27-01 Available to backorder	Cover	£4.61 £3.84
17	HV526 22 18-01 Available to backorder	Screw Citxpant	£1.24 £1.03
18	HV599 58 94-01 Available to backorder	Clutch Cover Assy	£30.12 £25.10
