Husqvarna 435 - Chain Brake & Clutch Cover 2

Husqvarna 435 - Chain Brake & Clutch Cover 2

Part No. 435_chain_brake_clutch_cover_2-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 435 - Chain Brake & Clutch Cover 2

Husqvarna 435 - Chain Brake & Clutch Cover 2

Description

Husqvarna 435

Model Year -

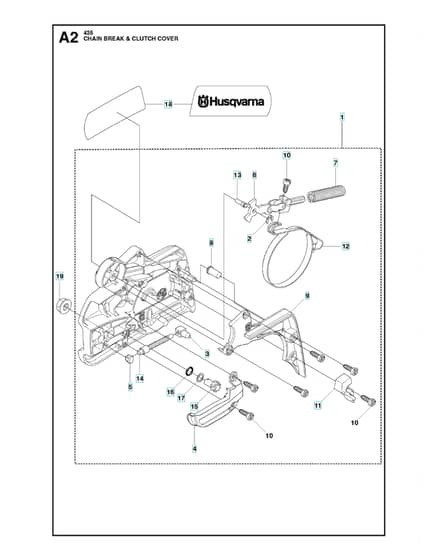

Chain Brake & Clutch Cover 2 - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV536 32 92-04 In stock	Clutch Cover Assy		£66.17 £55.14
	2		HV735 31 08-20 Available to backorder	E-Clip		£0.78 £0.65
	3		HV537 28 66-01 Available to backorder	Pawl		£6.40 £5.33
	4		HV540 06 33-01 Available to backorder	Chain Guide		£5.51 £4.59
	5		HV537 01 74-01 Available to backorder	Bearing Sleeve		£5.75 £4.79
	6		HV503 89 08-02 Available to backorder	Knee Joint Assy		£27.20 £22.67
	7		HV505 89 26-01 Available to backorder	Brake Spring		£5.02 £4.18
	8		HV503 85 52-01 Available to backorder	Guide Bushing		£5.75 £4.79
	9		HV544 24 85-01 Available to backorder	Cover Lid		£8.34 £6.95
	10		HV503 21 70-10 Available to backorder	Screw Ccrpant		£1.61 £1.34
	11		HV544 25 31-01 Available to backorder	Wear Protection		£6.14 £5.12
	12		HV544 30 60-03 In stock	Brake Band Assy		£11.24 £9.37
	13		HV503 89 29-01 Available to backorder	Pin		£1.46 £1.22
	14		HV537 39 70-01 Available to backorder	Worm Screw		£12.66 £10.55
	15		HV537 07 94-02 Available to backorder	Worm Wheel		£12.84 £10.70
	16		HV740 48 07-02 Available to backorder	O-Ring		£3.82 £3.18
	17		HV503 23 00-63 Available to backorder	Washer		£2.30 £1.92
	18		HV544 37 68-01 Available to backorder	Label		£3.07 £2.56
	19		HV503 22 00-01 In stock	Hexagon Nut		£2.63 £2.19

Description

Husqvarna 435

Model Year -

Chain Brake & Clutch Cover 2 - Parts Diagram
