Husqvarna 405XE NERA - 970654303 - Blade Motor And Cutting Equipment 01

Name: Husqvarna 405XE NERA - 970654303 - Blade Motor And Cutting Equipment 01
SKU: 405XE_NERA_970654303_GH_746626_Original_20file-group
Price: 0.82 GBP
Availability: InStock

Part No. 405XE_NERA_970654303_GH_746626_Original_20file-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 405XE NERA - 970654303 - Blade Motor And Cutting Equipment 01

Description

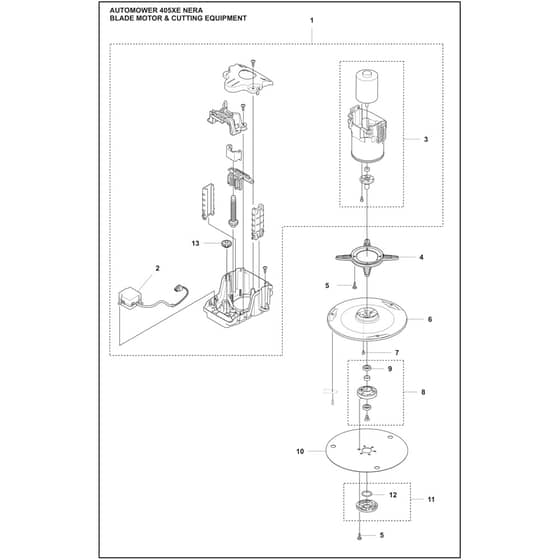

Husqvarna 405XE NERA - 970654303 - Blade Motor And Cutting Equipment - Parts Diagram

	Part No.	Details
1	HV546 83 89-02 Available to backorder	Cutting Module (Cutting module)	£197.76 £164.80
2	HV592 73 58-03 Available to backorder	Height Adjustment Motor (Cutting height adjustment motor)	£80.04 £66.70
3	HV599 42 83-02 Available to backorder	Cutter Motor Assy (Cutting motor front)	£118.20 £98.50
4	HV599 31 82-01 Available to backorder	Frame	£10.84 £9.03
5	HV575 54 33-14 In stock	Screw	£1.93 £1.61
6	HV531 17 74-01 Available to backorder	Cutting Disc (Blade disc)	£17.36 £14.47
7	HV590 50 87-01 Available to backorder	Screw	£0.98 £0.82
8	HV588 42 17-02 Available to backorder	Bearing Housing Assy	£20.89 £17.41
9	HV593 08 08-01 Available to backorder	Ball Bearing (Tube 50 pcs)	£282.96 £235.80
9	HV535 07 57-03 Available to backorder	Ball Bearing	£6.41 £5.34
10	HV598 79 48-01 Available to backorder	Skid Plate	£20.26 £16.88
11	HV587 44 96-01 Available to backorder	Cover Kit (Bearing cover)	£12.52 £10.43
12	HV585 29 75-01 Available to backorder	O-Ring	£3.89 £3.24
13	HV599 31 76-01 Available to backorder	Gear Wheel	£4.69 £3.91
