Husqvarna 40 - 2001-Current - Carburetor Details 2

Description

Husqvarna 40

Model Year - 2001-Current

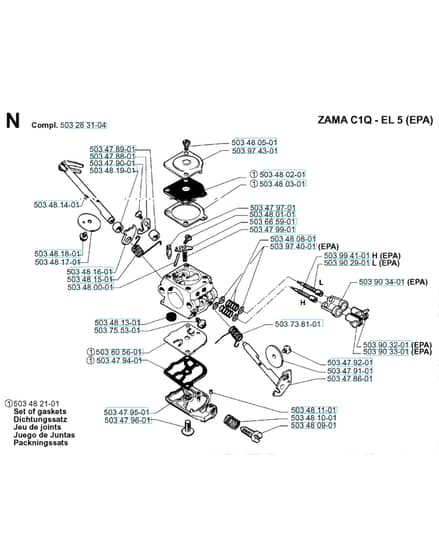

Carburetor Details 2 - Parts Diagram

	Part No.	Details
503478601	HV503 47 86-01 Available to backorder	Shaft Assy	£16.21 £13.51
503479001	HV503 47 90-01 Available to backorder	Screw	£1.28 £1.07
503479101	HV503 47 91-01 Available to backorder	Valve	£8.47 £7.06
503479201	HV503 47 92-01 Available to backorder	Screw	£1.28 £1.07
503479401	HV503 47 94-01 Available to backorder	Gasket503 48 21-01 Set Of Gaskets	£4.63 £3.86
503479701	HV503 47 97-01 Available to backorder	Valve	£14.81 £12.34
503479901	HV503 47 99-01 Available to backorder	Spring	£3.32 £2.77
503480001	HV503 48 00-01 Available to backorder	Pin Retaining Screw	£4.64 £3.87
503480201	HV503 48 02-01 Available to backorder	Diaphragm503 48 21-01 Set Of Gaskets	£17.69 £14.74
503480301	HV503 48 03-01 Available to backorder	Gasket503 48 21-01 Set Of Gaskets	£5.59 £4.66
503480501	HV503 48 05-01 Available to backorder	Screw	£1.56 £1.30
503480801	HV503 48 08-01 Available to backorder	Spring	£3.46 £2.88
503480901	HV503 48 09-01 Available to backorder	Screw	£11.26 £9.38
503481101	HV503 48 11-01 Available to backorder	Piece	£6.36 £5.30
503481401	HV503 48 14-01 Available to backorder	Shaft Assy	£30.31 £25.26
503481601	HV503 48 16-01 Available to backorder	Lever	£6.06 £5.05
503481801	HV503 48 18-01 Available to backorder	Screw	£1.28 £1.07
503481901	HV503 48 19-01 Available to backorder	Collar	£7.70 £6.42
503665901	HV503 66 59-01 Available to backorder	Lever	£5.63 £4.69
503755301	HV503 75 53-01 Available to backorder	Screw	£1.13 £0.94
503805601	HV503 80 56-01 Available to backorder	Diaphragm Pump503 48 21-01 Set Of Gaskets	£11.26 £9.38
503903301	HV503 90 33-01 Available to backorder	Limiter Capepa	£5.05 £4.21
503903401	HV503 90 34-01 Available to backorder	Retainerepa	£4.64 £3.87
503974001	HV503 97 40-01 Available to backorder	Washerepa	£2.30 £1.92
