Husqvarna 395XP/XPG - Chain Brake & Clutch Cover

Name: Husqvarna 395XP/XPG - Chain Brake & Clutch Cover
SKU: 395xp_xpg_chain_brake_clutch_cover-group
Price: 0.65 GBP
Availability: InStock

Part No. 395xp_xpg_chain_brake_clutch_cover-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 395XP/XPG - Chain Brake & Clutch Cover

Description

Husqvarna 395XP/XPG

Model Year -

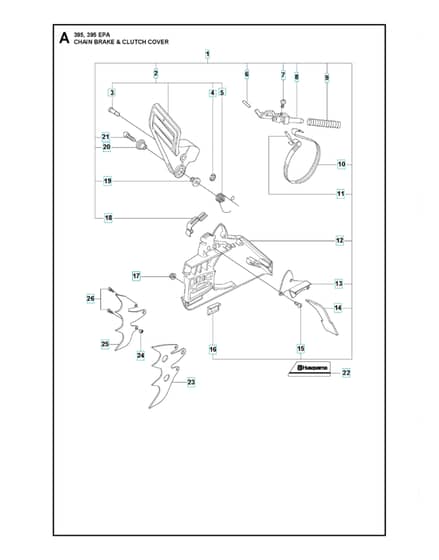

Chain Brake & Clutch Cover - Parts Diagram

	Part No.	Details
1	HV503 73 15-06 Available to backorder	Chain Brake Assy	£137.16 £114.30
2	HV503 76 08-01 Available to backorder	Hand Guard Assy	£40.69 £33.91
3	HV503 80 27-01 Available to backorder	Pivot Pin	£5.02 £4.18
4	HV735 31 08-20 Available to backorder	E-Clip	£0.78 £0.65
5	HV503 57 97-01 Available to backorder	Position Spring	£4.50 £3.75
6	HV720 12 33-00 Available to backorder	Parallel Pin	£1.28 £1.07
8	HV501 87 53-01 Available to backorder	Knee Joint Assy	£28.20 £23.50
9	HV503 71 71-01 Available to backorder	Brake Spring	£7.06 £5.88
10	HV503 72 07-02 Available to backorder	Brake Band	£11.54 £9.62
11	HV721 42 52-50 Available to backorder	Spring Pin	£1.28 £1.07
12	HV503 72 08-01 Available to backorder	Clutch Cover	£39.73 £33.11
13	HV503 72 06-01 Available to backorder	Lid	£9.08 £7.57
14	HV503 57 37-01 Available to backorder	Chip Guard	£7.06 £5.88
15	HV503 21 28-10 Available to backorder	Screw Ccrpant	£1.32 £1.10
16	HV501 51 72-01 Available to backorder	Chain Guide	£4.55 £3.79
17	HV503 22 00-01 In stock	Hexagon Nut	£2.63 £2.19
18	HV501 87 47-01 In stock	Spring	£3.32 £2.77
19	HV503 52 08-01 Available to backorder	Shaft	£4.50 £3.75
20	HV501 76 80-01 Available to backorder	Shaft	£5.51 £4.59
21	HV503 20 26-16 Available to backorder	Screw Ihscm	£1.79 £1.49
22	HV537 32 95-01 Available to backorder	Label	£3.07 £2.56
23	HV503 69 02-01 Available to backorder	Spike	£29.18 £24.32
24	HV503 22 24-01 Available to backorder	Lock Nut	£1.87 £1.56
25	HV503 71 24-01 Available to backorder	Spike	£22.08 £18.40
26	HV503 20 02-12 Available to backorder	Screw Ihscfm	£1.79 £1.49
