Husqvarna 394XP - 1998-Current - Chain Brake

Husqvarna 394XP - 1998-Current - Chain Brake

Part No. 394xp_1998_current_chain_brake-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

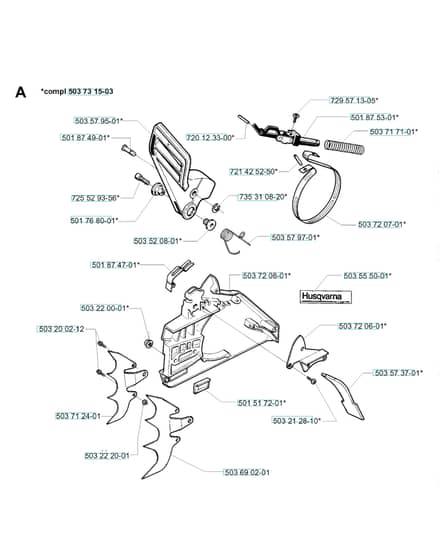

Husqvarna 394XP - 1998-Current - Chain Brake

Husqvarna 394XP - 1998-Current - Chain Brake

Description

Husqvarna 394XP

Model Year - 1998-Current

Chain Brake - Parts Diagram

Ref.		Img.	Part No.	Details
	501517201		HV501 51 72-01 Available to backorder	Chain Guide		£4.55 £3.79
	501768001		HV501 76 80-01 Available to backorder	Shaft		£5.51 £4.59
	501874701		HV501 87 47-01 In stock	Spring		£3.32 £2.77
	501875301		HV501 87 53-01 Available to backorder	Knee Joint Assy		£28.20 £23.50
	503200212		HV503 20 02-12 Available to backorder	Screw Ihscfm		£1.79 £1.49
	503212810		HV503 21 28-10 Available to backorder	Screw Ccrpant		£1.32 £1.10
	503220001		HV503 22 00-01 In stock	Hexagon Nut		£2.63 £2.19
	503520801		HV503 52 08-01 Available to backorder	Shaft		£4.50 £3.75
	503573701		HV503 57 37-01 Available to backorder	Chip Guard		£7.06 £5.88
	503579701		HV503 57 97-01 Available to backorder	Position Spring		£4.50 £3.75
	503690201		HV503 69 02-01 Available to backorder	Spike		£29.18 £24.32
	503712401		HV503 71 24-01 Available to backorder	Spike		£22.08 £18.40
	503717101		HV503 71 71-01 Available to backorder	Brake Spring		£7.06 £5.88
	503720601		HV503 72 06-01 Available to backorder	Lid		£9.08 £7.57
	503720801		HV503 72 08-01 Available to backorder	Clutch Cover		£39.73 £33.11
	720123300		HV720 12 33-00 Available to backorder	Parallel Pin		£1.28 £1.07
	721425250		HV721 42 52-50 Available to backorder	Spring Pin		£1.28 £1.07
	725529356		HV725 52 93-56 Available to backorder	Screw Ihscm		£1.56 £1.30
	735310820		HV735 31 08-20 Available to backorder	E-Clip		£0.78 £0.65

Description

Husqvarna 394XP

Model Year - 1998-Current

Chain Brake - Parts Diagram
