Husqvarna 385XP - 2006-Current - Crankcase

Description

Husqvarna 385XP

Model Year - 2006-Current

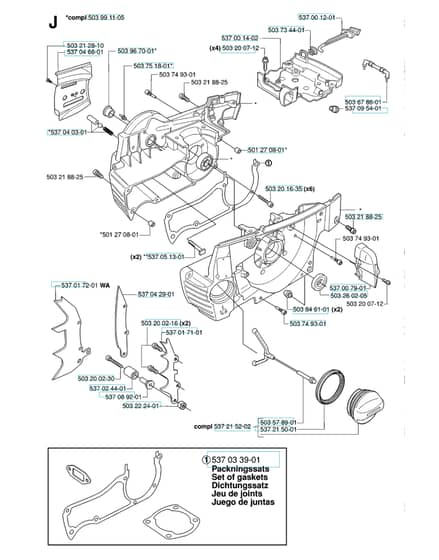

Crankcase - Parts Diagram

	Part No.	Details
501270801	HV593 80 60-01 In stock	Guide Bushing	Was £5.60 £4.67 Special Price £1.80 £1.50
503200230	HV503 20 02-30 Available to backorder	Screw Ihscfm	£2.56 £2.13
503201635	HV503 20 16-35 Available to backorder	Screw Ihscfm	£2.54 £2.12
503212810	HV503 21 28-10 Available to backorder	Screw Ccrpant	£1.32 £1.10
503222401	HV503 22 24-01 Available to backorder	Lock Nut	£1.87 £1.56
503260205	HV503 26 02-05 Available to backorder	Sealing Ring	£8.32 £6.93
503578901	HV503 57 89-01 Available to backorder	Holder	£5.42 £4.52
503734401	HV503 73 44-01 In stock	Grommet	£4.06 £3.38
503749301	HV503 74 93-01 Available to backorder	Screw	£2.05 £1.71
503751801	HV503 75 18-01 Available to backorder	Pin	£1.45 £1.21
503846101	HV503 84 61-01 Available to backorder	Buffer	Was £5.90 £4.92 Special Price £2.39 £1.99
503967001	HV503 96 70-01 Available to backorder	Bushing	£6.01 £5.01
503991105	HV503 99 11-05 Available to backorder	Crankcase Assy	£346.80 £289.00
537001201	HV537 00 12-01 Available to backorder	Choke Control	£6.40 £5.33
537007901	HV537 00 79-01 Available to backorder	Air Nozzle	£7.06 £5.88
537017101	HV537 01 71-01 Available to backorder	Spike	£14.93 £12.44
537017201	HV537 01 72-01 Available to backorder	Spike	£25.76 £21.47
537024401	HV537 02 44-01 Available to backorder	Wear Protection	£7.70 £6.42
537033901	HV537 03 39-01 Available to backorder	Gasket Kit	£18.56 £15.47
537040301	HV537 04 03-01 Available to backorder	Valve	£6.56 £5.47
537042901	HV537 04 29-01 Available to backorder	Bumper	£14.93 £12.44
537046601	HV537 04 66-01 Available to backorder	Kit	£10.88 £9.07
537051301	HV537 05 13-01 Available to backorder	Bar Bolt	£5.51 £4.59
537089201	HV537 08 92-01 Available to backorder	Chain Catcher	£4.94 £4.12
537095401	HV537 09 54-01 Available to backorder	Grommet	£4.50 £3.75
