Husqvarna 385 - 2006-Current - Clutch & Oil Pump

Name: Husqvarna 385 - 2006-Current - Clutch & Oil Pump
SKU: 385_2006_current_clutch_oil_pump-group
Price: 0.63 GBP
Availability: InStock

Part No. 385_2006_current_clutch_oil_pump-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 385 - 2006-Current - Clutch & Oil Pump

Description

Husqvarna 385

Model Year - 2006-Current

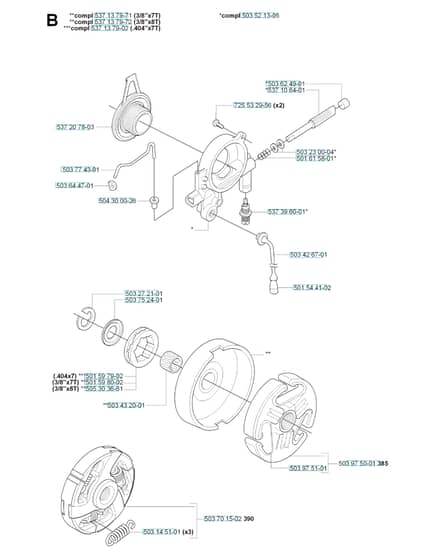

Clutch & Oil Pump - Parts Diagram

	Part No.	Details
501544102	HV501 54 41-02 Available to backorder	Oil Screen	£13.33 £11.11
501597902	HV501 59 79-02 Available to backorder	Rim	£14.24 £11.87
501598002	HV501 59 80-02 Available to backorder	Rim	£14.24 £11.87
501615801	HV501 61 58-01 Available to backorder	Spring	£3.32 £2.77
503145101	HV503 14 51-01 Available to backorder	Clutch Spring	£6.25 £5.21
503230004	HV503 23 00-04 Available to backorder	Washer	£2.30 £1.92
503272101	HV503 27 21-01 In stock	E-Clip	£0.76 £0.63
503426701	HV503 42 67-01 Available to backorder	Oil Hose	£13.22 £11.02
503432001	HV503 43 20-01 Available to backorder	Needle Holder	£10.51 £8.76
503521305	HV503 52 13-05 Available to backorder	Oil Pump Assy	£108.00 £90.00
503624901	HV503 62 49-01 Available to backorder	Sealing Plug	£5.03 £4.19
503644701	HV503 64 47-01 Available to backorder	Bushing	£8.34 £6.95
503701502	HV503 70 15-02 Available to backorder	Clutch Assy	£60.12 £50.10
503752401	HV503 75 24-01 Available to backorder	Washer	£2.94 £2.45
503774301	HV503 77 43-01 Available to backorder	Oil Pipe	£14.42 £12.02
503975001	HV503 97 50-01 Available to backorder	Clutch Assy	£75.12 £62.60
503975101	HV503 97 51-01 Available to backorder	Clutch Spring	£5.99 £4.99
504300026	HV504 30 00-26 Available to backorder	Sealing	£5.03 £4.19
505303661	HV505 30 36-61 Available to backorder	Rim	£14.52 £12.10
537106401	HV537 10 64-01 Available to backorder	Pump Piston	£18.38 £15.32
537137902	HV537 13 79-02 Available to backorder	Clutch Drum	£62.00 £51.67
537137971	HV537 13 79-71 Available to backorder	Clutch Drum Assy	£62.04 £51.70
537137972	HV537 13 79-72 Available to backorder	Clutch Drum Assy	£64.80 £54.00
537396001	HV537 39 60-02 Available to backorder	Insert	£8.28 £6.90
725532956	HV503 20 02-16 Available to backorder	Screw Ihscm	£2.09 £1.74
