Husqvarna 38459 - Drive

Name: Husqvarna 38459 - Drive
SKU: 38459_2013_12_drive-group
Price: 0.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna 38459

Model Year - 2013-12 - 917. 384590

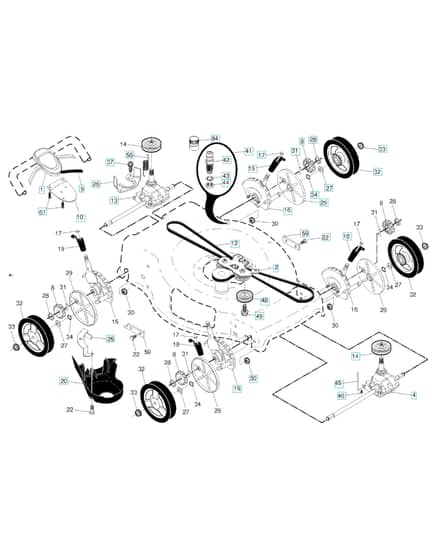

Drive - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV581 95 05-05 Available to backorder	Control	£70.12 £58.43
2	HV586 07 28-02 Available to backorder	Bracket	£18.12 £15.10
4	HV585 30 57-01 Available to backorder	Transmission	£87.94 £73.28
8	HV532 40 48-35 Available to backorder	Pinion	£12.96 £10.80
9	HV581 95 21-01 Available to backorder	Cable	£51.76 £43.13
10	HV532 43 27-90 Available to backorder	Bracket	£11.00 £9.17
13	HV581 68 08-01 Available to backorder	Transmission	£131.98 £109.98
15	HV581 75 88-01 Available to backorder	Adjusterrh	£40.76 £33.97
20	HV580 80 69-01 Available to backorder	Belt Cover	£25.22 £21.02
22	HV817 00 05-10 Available to backorder	Bolt	£3.62 £3.02
25	HV532 42 60-65 Available to backorder	Bracket	£11.64 £9.70
26	HV581 15 25-02 Available to backorder	Bracket	£12.94 £10.78
27	HV532 06 77-25 Available to backorder	Washer	£9.06 £7.55
28	HV812 00 00-58 Available to backorder	E-Clip	£0.77 £0.64
29	HV581 84 04-01 Available to backorder	Dust Cover	£9.72 £8.10
31	HV532 40 48-45 Available to backorder	Pawl. Drive	£6.30 £5.25
32	HV580 36 53-01 Available to backorder	Wheel	£21.59 £17.99
33	HV532 40 91-48 Available to backorder	Nut	£3.48 £2.90
34	HV532 19 74-80 Available to backorder	O-Ring	£3.84 £3.20
37	HV532 16 34-09 Available to backorder	Screw	£1.56 £1.30
41	HV532 43 84-89 Available to backorder	Kit	£25.22 £21.02
45	HV581 24 13-01 Available to backorder	Bracket	£5.82 £4.85
49	HV581 33 45-01 Available to backorder	Bolt	£3.12 £2.60
55	HV581 35 13-01 Available to backorder	Spring	£3.76 £3.13
59	HV532 44 21-13 Available to backorder	Bracket	£5.58 £4.65
61	HV532 18 16-98 Available to backorder	Screw	£1.82 £1.52
