Husqvarna 372XP/XPGX-TORQ - Crankcase

Name: Husqvarna 372XP/XPGX-TORQ - Crankcase
SKU: 372xp_xpgx_torq_crankcase-group
Price: 0.6 GBP
Availability: InStock

Part No. 372xp_xpgx_torq_crankcase-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna 372XP/XPGX-TORQ

Model Year -

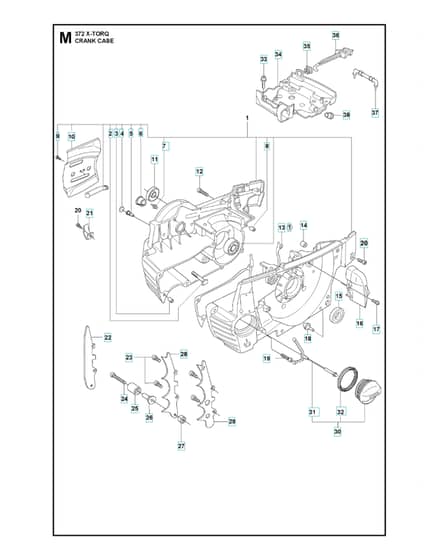

Crankcase - Parts Diagram

	Part No.	Details
1	HV503 62 68-19 Available to backorder	Crankcase Assy	£299.88 £249.90
2	HV537 05 13-01 Available to backorder	Bar Bolt	£5.51 £4.59
4	HV530 02 61-19 In stock	Check Valve	£6.40 £5.33
5	HV537 40 35-01 Available to backorder	Filter	£4.50 £3.75
6	HV503 96 70-01 Available to backorder	Bushing	£6.01 £5.01
7	HV503 75 18-01 Available to backorder	Pin	£1.45 £1.21
8	HV593 80 60-01 In stock	Guide Bushing	Was £5.60 £4.67 Special Price £1.80 £1.50
9	HV525 88 74-02 In stock	Screw Citxpant	£1.25 £1.04
10	HV537 01 37-01 Available to backorder	Chain Guide Plateup To Serial Number 20182009999	£10.26 £8.55
10	HV537 01 37-02 Available to backorder	Chain Guide Platefrom Serial Number 20182100001	£10.26 £8.55
11	HV503 26 03-01 Available to backorder	Sealing Ring	£14.57 £12.14
13	HV503 62 72-01 Available to backorder	Gasket	£4.82 £4.02
14	HV503 85 73-01 Available to backorder	Cover	£3.84 £3.20
15	HV505 27 57-19 In stock	Sealing Ring	£13.93 £11.61
16	HV503 62 84-01 Available to backorder	Air Nozzle	£7.18 £5.98
18	HV503 84 61-01 Available to backorder	Buffer	Was £5.90 £4.92 Special Price £2.39 £1.99
19	HV575 79 12-02 Available to backorder	Screw Itxscm	£0.72 £0.60
21	HV501 68 68-01 In stock	Chain Catcher	£4.80 £4.00
22	HV537 04 29-01 Available to backorder	Bumper	£14.93 £12.44
23	HV575 79 35-01 Available to backorder	Screw Itxpanm	£0.85 £0.71
24	HV525 75 51-03 Available to backorder	Screw Itxscfm	£2.40 £2.00
25	HV537 02 44-01 Available to backorder	Wear Protection	£7.70 £6.42
26	HV537 08 92-01 Available to backorder	Chain Catcher	£4.94 £4.12
27	HV503 22 24-01 Available to backorder	Lock Nut	£1.87 £1.56
28	HV537 01 71-01 Available to backorder	Spike	£14.93 £12.44
29	HV503 64 79-02 Available to backorder	Spike	£13.22 £11.02
30	HV537 21 52-02 In stock	Tank Cap Assy	£9.41 £7.84
31	HV503 57 89-01 Available to backorder	Holder	£5.42 £4.52
32	HV537 21 50-01 Available to backorder	Gasket	£5.32 £4.43
33	HV525 75 52-01 Available to backorder	Screw Itxscfm	£0.78 £0.65
34	HV588 09 37-01 Available to backorder	Carburettor Area Base	£12.70 £10.58
35	HV503 73 44-01 In stock	Grommet	£4.06 £3.38
36	HV515 98 22-01 Available to backorder	Choke	£4.09 £3.41
37	HV579 46 89-01 Available to backorder	Support	£4.88 £4.07
38	HV537 09 54-01 Available to backorder	Grommet	£4.50 £3.75
