Husqvarna 371XP - 1999-Current - Clutch & Oil Pump

Description

Husqvarna 371XP

Model Year - 1999-Current

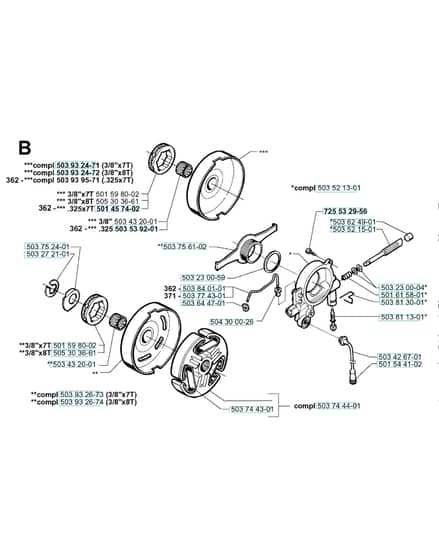

Clutch & Oil Pump - Parts Diagram

	Part No.	Details
501544102	HV501 54 41-02 Available to backorder	Oil Screen	£13.33 £11.11
501598002	HV501 59 80-02 Available to backorder	Rim3/8X7T	£14.24 £11.87
501615801	HV501 61 58-01 Available to backorder	Spring	£3.32 £2.77
503230004	HV503 23 00-04 Available to backorder	Washer	£2.30 £1.92
503230059	HV503 23 00-59 Available to backorder	Washer	£2.30 £1.92
503272101	HV503 27 21-01 In stock	E-Clip	£0.76 £0.63
503426701	HV503 42 67-01 Available to backorder	Oil Hose	£13.22 £11.02
503432001	HV503 43 20-01 Available to backorder	Needle Holder3/8	£10.51 £8.76
503521501	HV503 52 15-01 Available to backorder	Pump Piston	£18.38 £15.32
503539201	HV503 53 92-01 Available to backorder	Needle Bearing362 .325	£11.77 £9.81
503624901	HV503 62 49-01 Available to backorder	Sealing Plug	£5.03 £4.19
503644701	HV503 64 47-01 Available to backorder	Bushing	£8.34 £6.95
503744301	HV503 74 43-01 Available to backorder	Clutch Spring	£6.25 £5.21
503752401	HV503 75 24-01 Available to backorder	Washer	£2.94 £2.45
503756	HV582 27 01-07 Available to backorder	Pump Pinion	£12.56 £10.47
503774301	HV503 77 43-01 Available to backorder	Oil Pipe371	£14.42 £12.02
503811301	HV503 81 13-01 Available to backorder	Screw	£2.56 £2.13
503813001	HV503 81 30-01 Available to backorder	Spring	£3.32 £2.77
503840101	HV503 84 01-01 Available to backorder	Oil Pipe362	£14.27 £11.89
504300026	HV504 30 00-26 Available to backorder	Sealing	£5.03 £4.19
505303661	HV505 30 36-61 Available to backorder	Rim3/8X8T	£14.52 £12.10
725532956	HV503 20 02-16 Available to backorder	Screw Ihscm	£2.09 £1.74
