Husqvarna 362 - Chain Brake & Clutch Cover

Name: Husqvarna 362 - Chain Brake & Clutch Cover
SKU: 362_chain_brake_clutch_cover-group
Price: 0.62 GBP
Availability: InStock

Part No. 362_chain_brake_clutch_cover-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 362 - Chain Brake & Clutch Cover

Description

Husqvarna 362

Model Year -

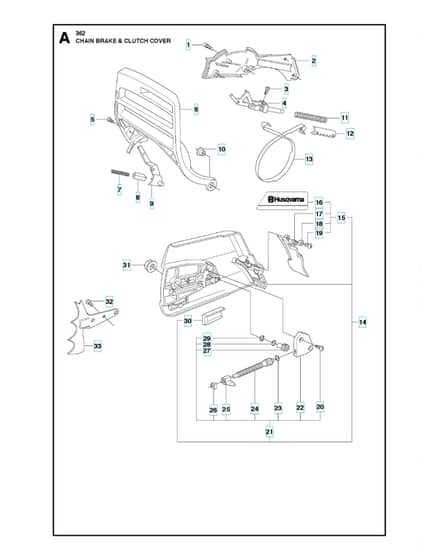

Chain Brake & Clutch Cover - Parts Diagram

	Part No.	Details
1	HV525 75 52-01 Available to backorder	Screw Itxscfm	£0.78 £0.65
2	HV503 75 11-03 Available to backorder	Hub Cap	£10.06 £8.38
5	HV586 43 85-01 In stock	Screw Itxscm	£0.74 £0.62
6	HV503 76 49-03 Available to backorder	Hand Guard	£38.94 £32.45
7	HV503 43 65-01 Available to backorder	Position Spring	£3.52 £2.93
8	HV503 83 81-02 Available to backorder	Lock	£6.40 £5.33
9	HV537 00 87-01 Available to backorder	Brake Lever	£13.46 £11.22
10	HV503 77 52-01 In stock	Bushing	£6.29 £5.24
11	HV503 70 99-02 Available to backorder	Brake Spring	£7.18 £5.98
12	HV503 79 27-02 Available to backorder	Support	£3.78 £3.15
13	HV503 75 22-02 Available to backorder	Brake Band Assy	£14.36 £11.97
14	HV537 03 35-07 Available to backorder	Clutch Cover Assy	£63.72 £53.10
15	HV537 03 35-71 Available to backorder	Clutch Cover Assy	£55.52 £46.27
16	HV537 03 38-03 Available to backorder	Label	£2.71 £2.26
17	HV503 76 29-02 Available to backorder	Chip Guard	£8.34 £6.95
18	HV503 89 70-01 Available to backorder	Sleeve	£5.63 £4.69
21	HV537 04 41-02 Available to backorder	Chain Tensioner	£47.48 £39.57
22	HV537 01 68-01 Available to backorder	Cover	£6.40 £5.33
23	HV503 23 00-66 Available to backorder	Washer	£2.30 £1.92
24	HV537 07 95-02 Available to backorder	Worm Screw	£12.84 £10.70
25	HV503 99 83-01 Available to backorder	Pawl	£7.14 £5.95
26	HV537 01 74-01 Available to backorder	Bearing Sleeve	£5.75 £4.79
27	HV537 07 94-02 Available to backorder	Worm Wheel	£12.84 £10.70
28	HV503 23 00-63 Available to backorder	Washer	£2.30 £1.92
29	HV740 48 07-02 Available to backorder	O-Ring	£3.82 £3.18
30	HV501 51 72-01 Available to backorder	Chain Guide	£4.55 £3.79
31	HV503 22 00-01 In stock	Hexagon Nut	£2.63 £2.19
32	HV525 88 74-02 In stock	Screw Citxpant	£1.25 £1.04
33	HV503 71 97-01 Available to backorder	Spike	£19.82 £16.52
