Husqvarna 362 - Carburetor

Name: Husqvarna 362 - Carburetor
SKU: 362_carburetor-group
Price: 0.93 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna 362

Model Year -

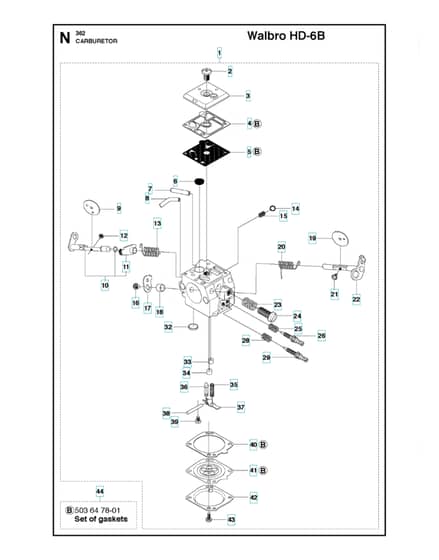

Carburetor - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV536 03 37-01 Available to backorder	Carburettor Walbro HD-12	£142.12 £118.43
3	HV503 79 98-01 Available to backorder	Cover	£5.12 £4.27
4	HV501 66 69-01 Available to backorder	Gasket	£4.66 £3.88
5	HV502 25 47-01 Available to backorder	Diaphragm Pump	£9.24 £7.70
6	HV501 66 61-01 Available to backorder	Screen	£5.26 £4.38
8	HV503 80 14-01 Available to backorder	Fitting	£7.86 £6.55
13	HV537 01 90-01 Available to backorder	Spring	£3.48 £2.90
14	HV501 46 85-01 Available to backorder	Ball	£4.68 £3.90
15	HV501 46 84-01 Available to backorder	Spring	£3.36 £2.80
16	HV501 46 87-01 Available to backorder	Screw	£1.28 £1.07
18	HV503 80 15-01 Available to backorder	Washer	£2.34 £1.95
19	HV503 80 00-01 Available to backorder	Valve	£8.54 £7.12
20	HV503 80 09-01 Available to backorder	Spring	£3.48 £2.90
21	HV530 03 50-15 Available to backorder	Screw	£1.12 £0.93
22	HV503 79 99-01 Available to backorder	Shaft	£17.06 £14.22
23	HV501 66 78-01 Available to backorder	Spring	£3.36 £2.80
26	HV503 80 11-01 Available to backorder	Needle	£9.72 £8.10
29	HV504 02 72-13 Available to backorder	Needle-Idle Speed	£5.88 £4.90
32	HV503 57 42-01 Available to backorder	Plug	£4.56 £3.80
35	HV503 56 24-01 Available to backorder	Spring	£3.41 £2.84
36	HV503 56 34-01 Available to backorder	Needle Valve	£9.24 £7.70
37	HV501 66 83-01 Available to backorder	Lever	£5.84 £4.87
38	HV505 52 01-25 Available to backorder	Pin	£4.56 £3.80
40	HV504 13 09-05 Available to backorder	Gasket	£4.66 £3.88
41	HV503 80 07-01 Available to backorder	Diaphragm	£19.24 £16.03
42	HV537 07 76-01 Available to backorder	Cover	£8.42 £7.02
44	HV503 64 78-01 Available to backorder	Repair Kitb	£12.84 £10.70
