Husqvarna 360 BT - Throttle Controls

Description

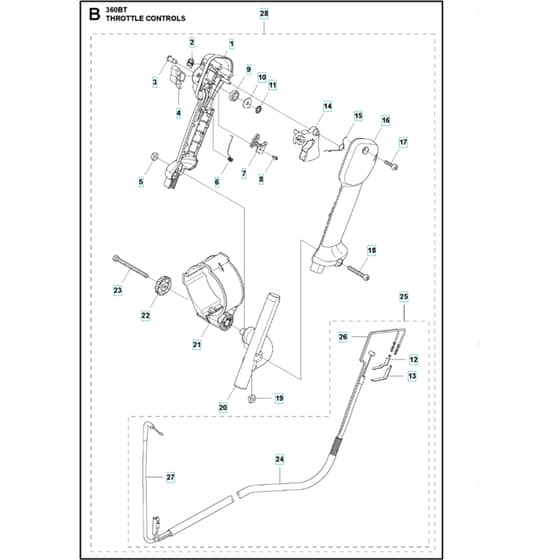

Husqvarna 360 BT - Throttle Controls - Parts Diagram

	Part No.	Details
1	HV502 24 48-01	Handle Half	In stock	Was £21.28 £17.73 Special Price £5.99 £4.99
3	HV537 14 12-03	Shaft Pivot	Out of stock	£6.22 £5.18
4	HV502 24 55-01	Control	Out of stock	£4.48 £3.73
6	HV505 56 79-01	Spring	Out of stock	£3.28 £2.73
11	HV735 58 35-01	Washer	Out of stock	£2.52 £2.10
12	HV537 22 63-01	Connector	Out of stock	£3.89 £3.24
13	HV537 22 62-01	Connector	Out of stock	£3.89 £3.24
14	HV502 24 54-01	Trigger	Out of stock	£7.85 £6.54
15	HV537 17 42-01	Spring Throttle Trig	Out of stock	£3.37 £2.81
16	HV502 24 49-01	Handle Half	Out of stock	Was £25.60 £21.33 Special Price £14.40 £12.00
17	HV505 29 12-01	Screw	Out of stock	£1.42 £1.18
18	HV505 29 08-01	Screw	Out of stock	£2.46 £2.05
20	HV502 24 53-01	Holder	Out of stock	£12.10 £10.08
23	HV725 23 44-51	Screw Ehhm	Out of stock	£3.62 £3.02
24	HV577 75 69-01	Tube	Out of stock	£8.45 £7.04
25	HV576 78 56-01	Wiring Assy	Out of stock	£65.76 £54.80
26	HV576 78 57-01	Cord	Out of stock	£31.39 £26.16
27	HV576 78 58-01	Cable	In stock	£31.21 £26.01
