Husqvarna 359 - 2011-Current - Clutch & Oil Pump

Description

Husqvarna 359

Model Year - 2011-Current

Clutch & Oil Pump - Parts Diagram

	Part No.	Details
1	HV544 18 01-04 Available to backorder	Oil Pump Assy	£73.32 £61.10
2	HV503 23 00-60 Available to backorder	Washer	£2.06 £1.72
3	HV537 06 93-02 Available to backorder	Pump Piston	£21.23 £17.69
4	HV503 89 16-01 Available to backorder	Spring	£3.32 £2.77
5	HV503 89 15-01 Available to backorder	Spring	£2.80 £2.33
6	HV537 02 71-01 Available to backorder	Adjuster	£6.40 £5.33
7	HV721 11 64-30 Available to backorder	Grooved Pin	£1.28 £1.07
8	HV537 10 11-02 Available to backorder	Oil Hose	£11.20 £9.33
9	HV503 96 75-01 Available to backorder	Oil Plummet	£13.60 £11.33
10	HV503 21 74-12 Available to backorder	Screw Ihsct	£1.82 £1.52
11	HV537 09 18-01 Available to backorder	Oil Pressure Hose	£13.69 £11.41
12	HV503 91 29-03 Available to backorder	Pump Pinion"3/8""X7T"	£8.45 £7.04
12	HV503 91 27-03 Available to backorder	Pump Pinion.325X7T	£9.00 £7.50
13	HV503 98 00-02 Available to backorder	Clutch Drum.325X7T	£51.32 £42.77

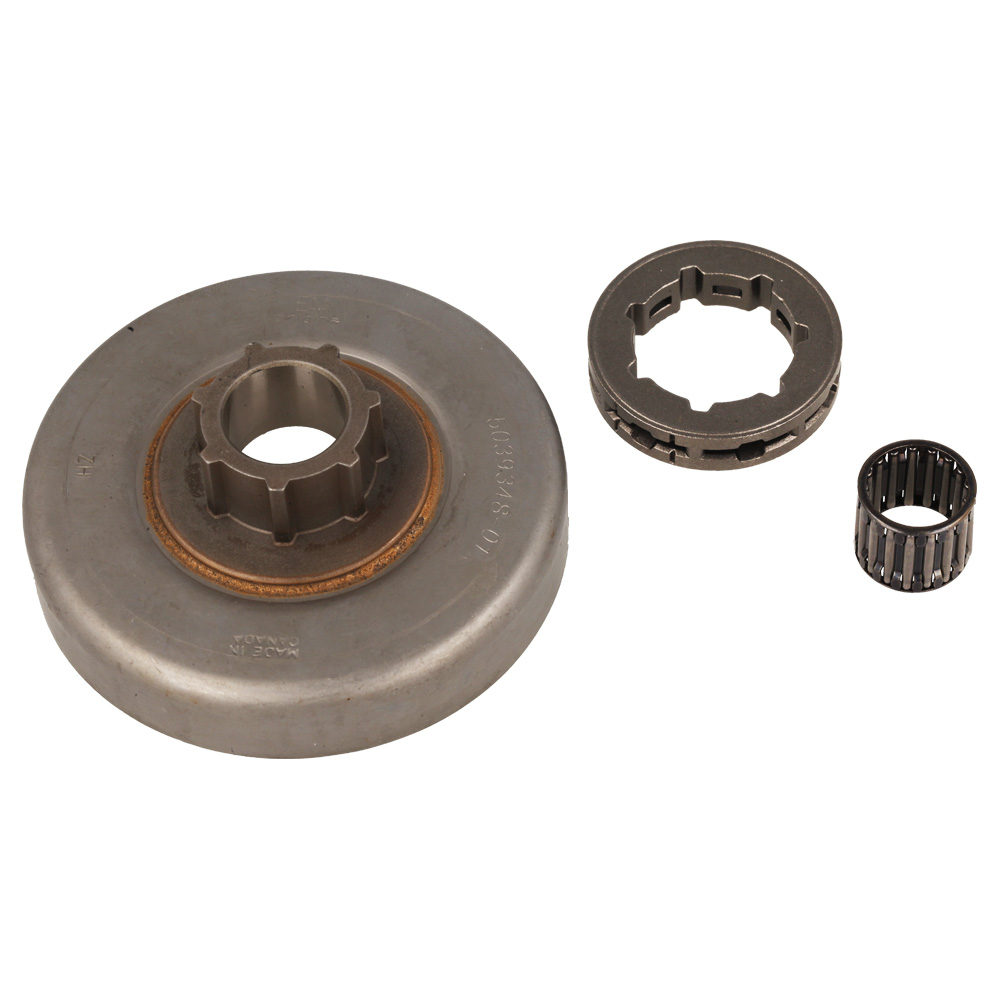

13	HV503 93 48-71 Available to backorder	Clutch Drum Assy"3/8""X7T"	£55.16 £45.97
14	HV501 59 80-02 Available to backorder	Rim"3/8""X7T"	£14.24 £11.87
15	HV599 53 15-01 In stock	Needle Bearing	£10.88 £9.07

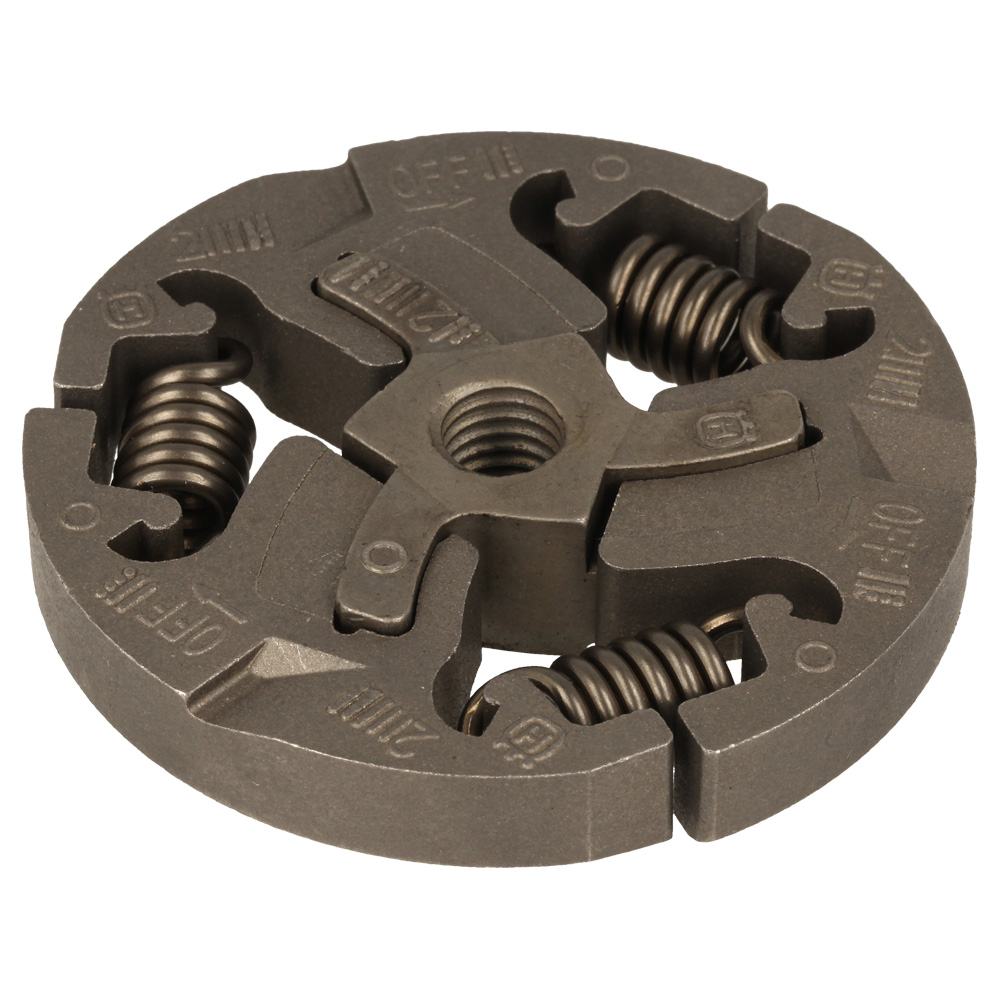

16	HV537 10 34-03 Available to backorder	Clutch Assy	£75.12 £62.60

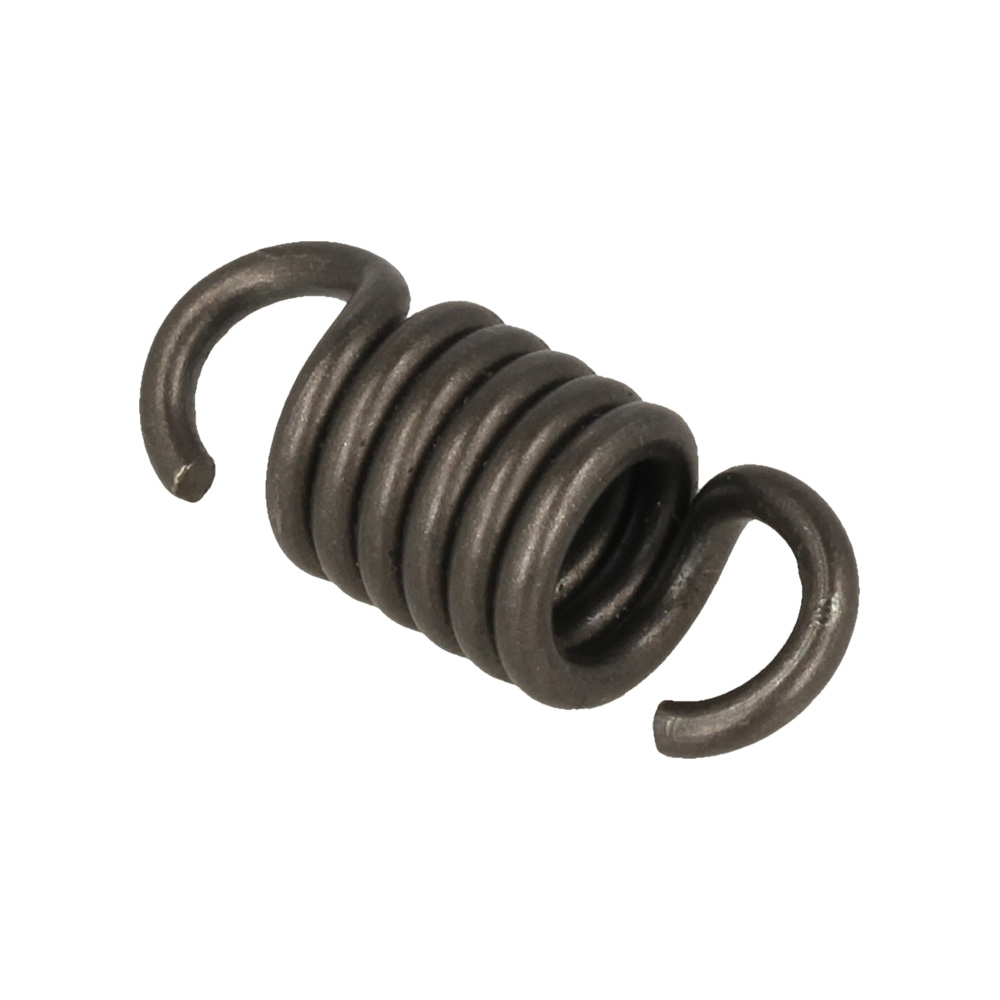

17	HV537 16 69-01 Available to backorder	Clutch Spring	£6.25 £5.21
