Husqvarna 359 - 2011-Current - Chain Brake

Husqvarna 359 - 2011-Current - Chain Brake

Part No. 359_2011_current_chain_brake-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 359 - 2011-Current - Chain Brake

Husqvarna 359 - 2011-Current - Chain Brake

Description

Husqvarna 359

Model Year - 2011-Current

Chain Brake - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV537 10 78-03 Available to backorder	Chain Brake		£72.72 £60.60
	2		HV503 89 29-01 Available to backorder	Pin		£1.46 £1.22
	4		HV503 89 08-02 Available to backorder	Knee Joint Assy		£27.20 £22.67

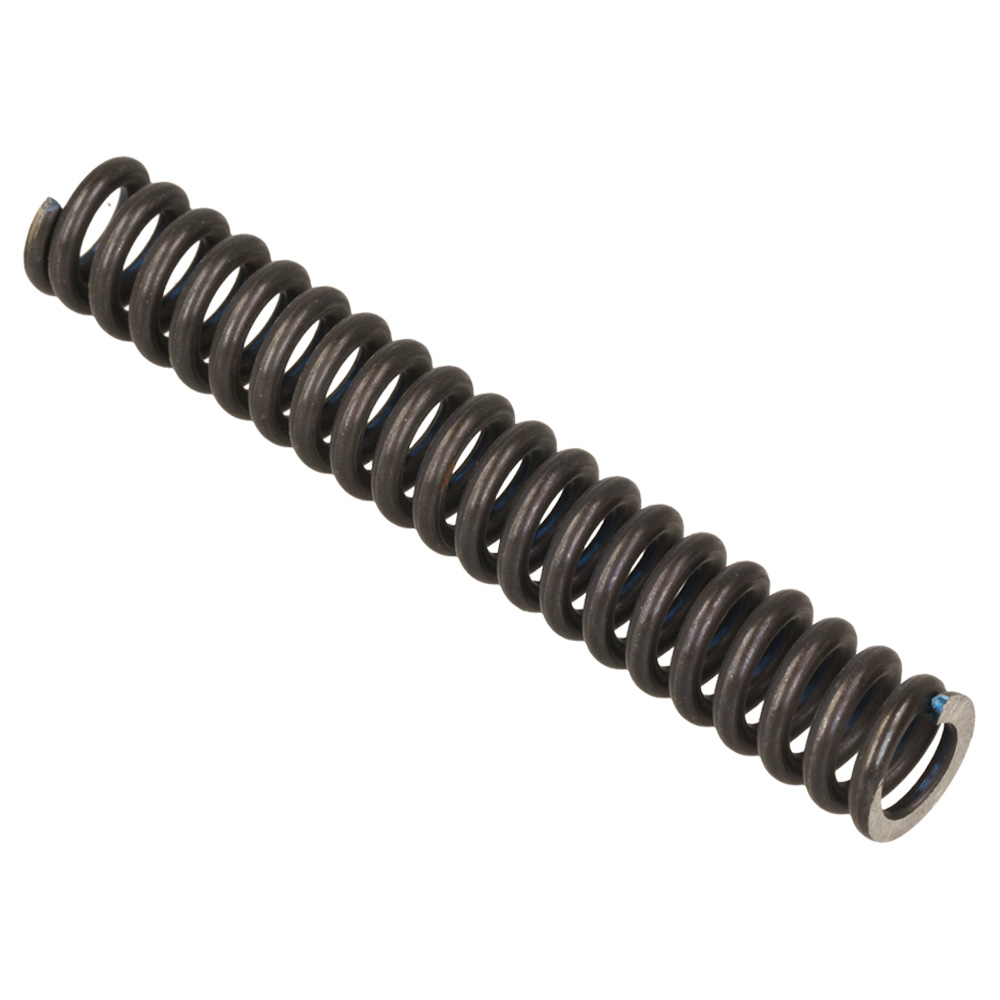

	5		HV503 46 59-01 Available to backorder	Brake Spring		£5.57 £4.64
	6		HV735 31 08-20 Available to backorder	E-Clip		£0.78 £0.65
	7		HV537 04 30-03 In stock	Brake Band Assy		£11.92 £9.93

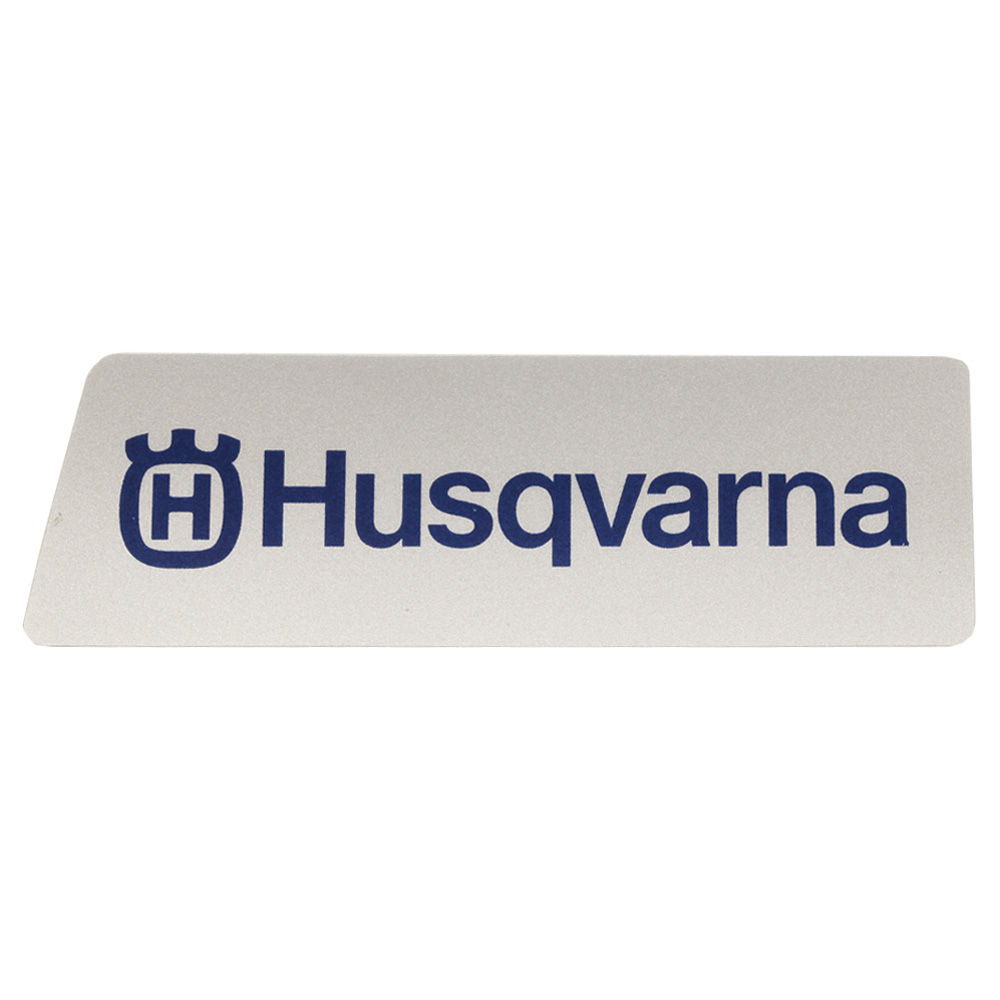

	8		HV537 37 04-01 Available to backorder	Label		£2.86 £2.38
	9		HV503 85 52-01 Available to backorder	Guide Bushing		£5.75 £4.79
	10		HV537 10 80-02 Available to backorder	Hub Cap		£10.26 £8.55
	11		HV537 08 90-01 Available to backorder	Wear Protection		£8.34 £6.95
	12		HV503 21 70-10 Available to backorder	Screw Ccrpant		£1.61 £1.34
	13		HV503 85 66-01 Available to backorder	Cover Plate		£6.40 £5.33
	14		HV503 22 00-01 In stock	Hexagon Nut		£2.63 £2.19
	16		HV537 02 99-01 Available to backorder	Wear Protection		£6.52 £5.43
	17		HV503 89 30-03 In stock	Screw		£2.45 £2.04
	18		HV503 23 00-71 Available to backorder	Washer		£2.30 £1.92

Description

Husqvarna 359

Model Year - 2011-Current

Chain Brake - Parts Diagram
