Husqvarna 357XP - 2011-Current - Crankcase

Name: Husqvarna 357XP - 2011-Current - Crankcase
SKU: 357xp_2011_current_crankcase-group
Price: 1.07 GBP
Availability: InStock

Part No. 357xp_2011_current_crankcase-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 357XP - 2011-Current - Crankcase

Description

Husqvarna 357XP

Model Year - 2011-Current

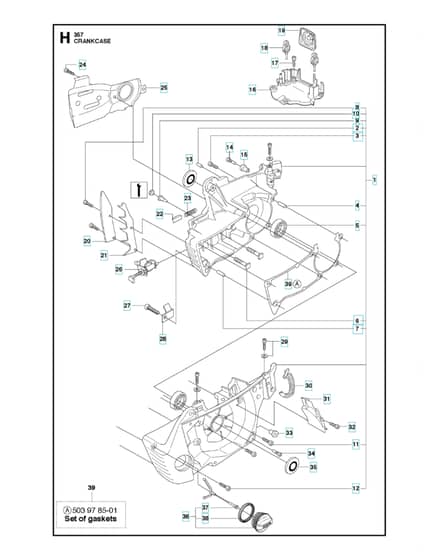

Crankcase - Parts Diagram

	Part No.	Details
1	HV503 92 53-05 Available to backorder	Crankcase Assy	£289.92 £241.60
2	HV721 12 07-30 Available to backorder	Grooved Pin	£1.28 £1.07
3	HV503 20 08-32 Available to backorder	Screw Ihscm	£2.56 £2.13
6	HV503 87 54-01 Available to backorder	Bar Bolt	£5.32 £4.43
8	HV503 20 07-76 Available to backorder	Screw Ihscfm	£3.66 £3.05
9	HV530 02 61-19 In stock	Check Valve	£6.40 £5.33
10	HV537 40 35-01 Available to backorder	Filter	£4.50 £3.75
11	HV503 20 25-16 Available to backorder	Screw Ihscm	£1.79 £1.49
12	HV503 20 02-20 Available to backorder	Screw Ihscfm	£2.14 £1.78
16	HV503 92 79-03 Available to backorder	Carburettor	£5.93 £4.94
17	HV503 21 75-12 Available to backorder	Screw Ihscft	£1.79 £1.49
18	HV503 86 93-01 Available to backorder	Support	£5.90 £4.92
19	HV537 14 65-01 Available to backorder	Bellows	£18.26 £15.22
20	HV537 02 18-01 Available to backorder	Bumper	£9.73 £8.11
21	HV503 97 38-01 In stock	Spike	£11.89 £9.91
22	HV503 89 24-01 Available to backorder	Lock	£6.29 £5.24
23	HV503 43 65-01 Available to backorder	Position Spring	£3.52 £2.93
25	HV503 93 54-01 Available to backorder	Chain Guide Plate	£10.90 £9.08
26	HV537 07 12-01 Available to backorder	Chain Tensioner	£34.49 £28.74
27	HV503 21 88-76 Available to backorder	Screw Ihsct	£2.14 £1.78
28	HV537 37 79-01 Available to backorder	Chain Catcher	£4.94 £4.12
29	HV503 21 39-01 Available to backorder	Screw Ihsct	£1.56 £1.30
30	HV595 30 30-01 In stock	Snap Locking	£4.37 £3.64
31	HV503 92 90-01 Available to backorder	Jet	£6.52 £5.43
32	HV503 21 74-12 Available to backorder	Screw Ihsct	£1.82 £1.52
33	HV503 86 92-01 Available to backorder	Bushing	£7.18 £5.98
34	HV503 21 51-01 Available to backorder	Screw Ihsct	£2.30 £1.92
35	HV505 27 57-19 In stock	Sealing Ring	£13.93 £11.61
37	HV503 57 89-01 Available to backorder	Holder	£5.42 £4.52
39	HV503 97 85-01 Available to backorder	Gasket Kita	£19.73 £16.44
