Husqvarna 356 BT - Carburetor Details

Name: Husqvarna 356 BT - Carburetor Details
Brand: Bosch
SKU: 356 BT - Carburetor Details-group
Price: 0.85 GBP
Availability: InStock

Part No. 356 BT - Carburetor Details-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

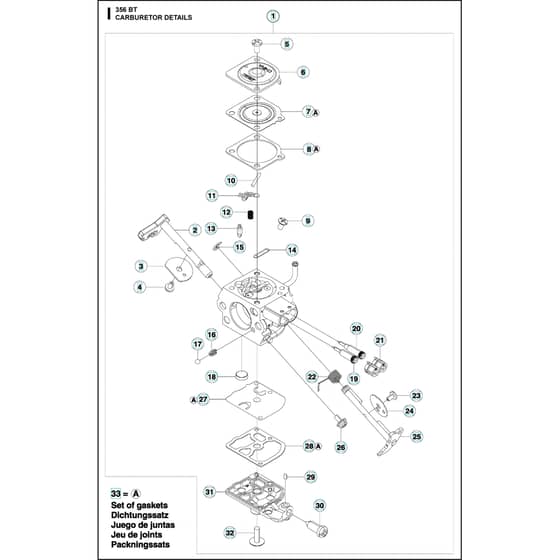

Husqvarna 356 BT - Carburetor Details - Parts Diagram

	Part No.	Details
1	HV579 46 27-01 Available to backorder	Carburettor	£127.68 £106.40
2	HV537 39 02-01 Available to backorder	Shaft Assy	£21.74 £18.12
3	HV537 37 03-01 Available to backorder	Valve	£7.25 £6.04
4	HV503 48 18-01 Available to backorder	Screw	£1.28 £1.07
5	HV503 48 05-01 Available to backorder	Screw	£1.56 £1.30
8	HV503 48 03-01 Available to backorder	Gasket	£5.59 £4.66
10	HV503 48 00-01 Available to backorder	Pin Retaining Screw	£4.64 £3.87
11	HV503 66 59-01 Available to backorder	Lever	£5.63 £4.69
13	HV503 47 97-01 Available to backorder	Valve	£14.81 £12.34
14	HV503 53 56-01 Available to backorder	Plug Welch	£5.17 £4.31
15	HV537 38 52-01 Available to backorder	Clip	£1.02 £0.85
18	HV503 53 57-01 Available to backorder	Strainer	£5.44 £4.53
22	HV537 01 97-01 Available to backorder	Spring	£2.74 £2.28
23	HV503 47 92-01 Available to backorder	Screw	£1.28 £1.07
26	HV503 75 53-01 Available to backorder	Screw	£1.13 £0.94
27	HV537 02 00-01 Available to backorder	Diaphragm Pump	£14.98 £12.48
28	HV537 02 01-01 Available to backorder	Gasket	£4.63 £3.86
29	HV503 48 11-01 Available to backorder	Piece	£6.36 £5.30
30	HV537 02 07-01 Available to backorder	Screw	£1.79 £1.49
31	HV537 02 02-01 Available to backorder	Cover	£24.00 £20.00

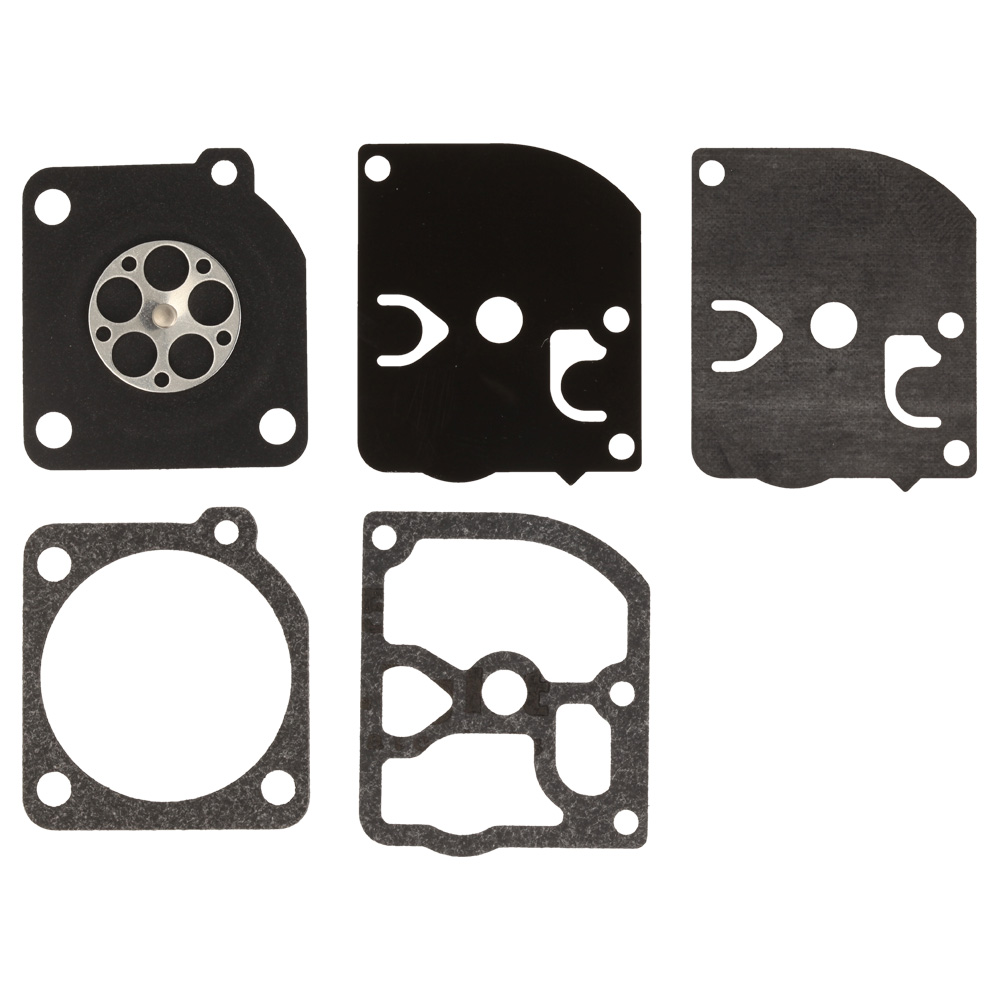

33	HV537 24 36-01 In stock	Gasket Kit	£13.44 £11.20
