Husqvarna 356 BF - X-SERIES from 2014-Current - Fan

Name: Husqvarna 356 BF - X-SERIES from 2014-Current - Fan
Brand: Bosch
SKU: 356 BF - X-SERIES from 20144900001-Current - Fan-group
Price: 1.3 GBP
Availability: InStock

Part No. 356 BF - X-SERIES from 20144900001-Current - Fan-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 356 BF - X-SERIES from 2014-Current - Fan

Description

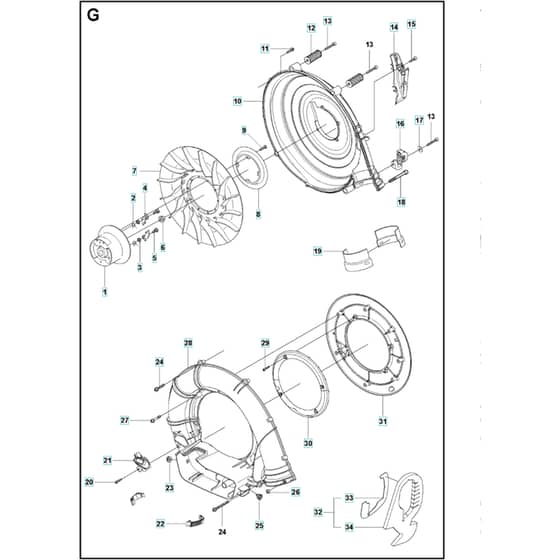

Husqvarna 356 BF - X-SERIES from 2014-Current - Fan - Parts Diagram

	Part No.	Details
1	HV537 19 25-01 Available to backorder	Hub	£75.84 £63.20
3	HV503 23 00-42 Available to backorder	Washer	£1.78 £1.48
4	HV501 67 32-01 In stock	Pawl	£7.14 £5.95
5	HV501 81 99-01 Available to backorder	Screw	£2.14 £1.78
6	HV503 22 04-01 In stock	Nut	£2.05 £1.71
7	HV537 18 89-01 Available to backorder	Impeller	£131.76 £109.80
9	HV503 20 49-01 Available to backorder	Screw Ihpanm	£1.56 £1.30
10	HV544 28 37-01 Available to backorder	Fan Housing	£144.24 £120.20
11	HV503 21 75-25 Available to backorder	Screw Ihscft	£2.05 £1.71
12	HV537 25 27-01 Available to backorder	Antivibration Element	£41.35 £34.46
16	HV537 30 01-01 Available to backorder	Antivibration Element	£22.09 £18.41
17	HV734 11 47-41 Available to backorder	Washer	£2.30 £1.92
19	HV537 18 84-01 Available to backorder	Wear Ring	£8.34 £6.95
22	HV595 30 30-01 In stock	Snap Locking	£4.37 £3.64
24	HV537 31 60-01 Available to backorder	Screw Ihscfm	£2.83 £2.36
26	HV503 22 10-15 Available to backorder	Hexagon Nut	£3.59 £2.99
28	HV537 05 71-01 Available to backorder	Fan Housing	£166.80 £139.00
31	HV537 05 73-01 Available to backorder	Guide Plate	£144.24 £120.20
