Husqvarna 356 BF - X-SERIES from 2014-Current - Carburetor Details

Description

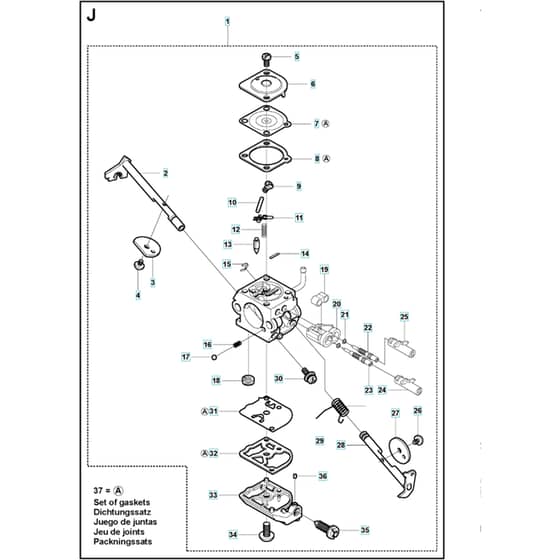

Husqvarna 356 BF - X-SERIES from 2014-Current - Carburetor Details - Parts Diagram

	Part No.	Details
2	HV537 39 02-01 Available to backorder	Shaft Assy	£21.74 £18.12
3	HV537 37 03-01 Available to backorder	Valve	£7.25 £6.04
4	HV503 48 18-01 Available to backorder	Screw	£1.28 £1.07
5	HV503 48 05-01 Available to backorder	Screw	£1.56 £1.30
7	HV503 48 02-01 Available to backorder	Diaphragm	£17.69 £14.74
8	HV503 48 03-01 Available to backorder	Gasket	£5.59 £4.66
10	HV503 48 00-01 Available to backorder	Pin Retaining Screw	£4.64 £3.87
11	HV503 66 59-01 Available to backorder	Lever	£5.63 £4.69
13	HV503 47 97-01 Available to backorder	Valve	£14.81 £12.34
14	HV503 53 56-01 Available to backorder	Plug Welch	£5.17 £4.31
15	HV537 38 52-01 Available to backorder	Clip	£1.02 £0.85
18	HV503 53 57-01 Available to backorder	Strainer	£5.44 £4.53
19	HV537 27 42-01 Available to backorder	Boot	£4.56 £3.80
20	HV503 90 34-01 Available to backorder	Retainer	£4.64 £3.87
21	HV503 97 40-01 Available to backorder	Washer	£2.30 £1.92
23	HV537 27 56-01 Available to backorder	Screw	£17.62 £14.68
24	HV503 90 33-01 Available to backorder	Limiter Cap	£5.05 £4.21
26	HV503 47 92-01 Available to backorder	Screw	£1.28 £1.07
29	HV537 01 97-01 Available to backorder	Spring	£2.74 £2.28
30	HV503 75 53-01 Available to backorder	Screw	£1.13 £0.94
31	HV537 02 00-01 Available to backorder	Diaphragm Pump	£14.98 £12.48
32	HV537 02 01-01 Available to backorder	Gasket	£4.63 £3.86
33	HV537 02 02-01 Available to backorder	Cover	£24.00 £20.00
35	HV537 02 07-01 Available to backorder	Screw	£1.79 £1.49
36	HV503 48 11-01 Available to backorder	Piece	£6.36 £5.30
