Husqvarna 356 BF - X-SERIES 2004-2014 - Cylinder Piston / Muffler

Name: Husqvarna 356 BF - X-SERIES 2004-2014 - Cylinder Piston / Muffler
Brand: Bosch
SKU: 356 BF - X-SERIES 20044000001-20144899999 - Cylinder Piston / Mu
Price: 0.62 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 356 BF - X-SERIES 2004-2014 - Cylinder Piston / Muffler

Description

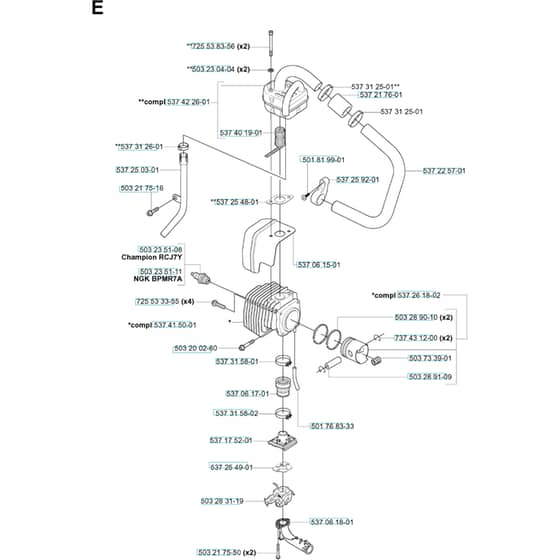

Husqvarna 356 BF - X-SERIES 2004-2014 - Cylinder Piston / Muffler - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV725 53 83-56 Available to backorder	Screw Ihscm	£5.32 £4.43
3	HV537 42 26-01 Available to backorder	Muffler	£105.46 £87.88
5	HV537 31 26-01 Available to backorder	Hose Clamp	£1.16 £0.97
6	HV537 25 03-01 Available to backorder	Outlet Pipe	£24.24 £20.20
7	HV503 21 75-16 Available to backorder	Screw Ihscft	£1.76 £1.47
9	HV503 23 51-08 In stock	Spark Plug	£3.72 £3.10
10	HV503 23 51-11 In stock	Spark Plug	£4.00 £3.33
11	HV725 53 33-55 In stock	Screw Ihscm	£1.92 £1.60
12	HV537 41 50-01 Available to backorder	Piston	£326.40 £272.00
13	HV503 20 02-60 Available to backorder	Screw	£3.62 £3.02
15	HV537 06 17-01 Available to backorder	Inlet Pipe	£37.54 £31.28
17	HV537 17 52-01 Available to backorder	Bracket	£9.82 £8.18
18	HV537 25 49-01 Available to backorder	Gasket	£6.60 £5.50
20	HV503 21 75-50 Available to backorder	Screw Ihscft	£3.04 £2.53
21	HV537 06 18-01 Available to backorder	Inlet Bend	£6.42 £5.35
25	HV737 43 12-00 Available to backorder	Snap Ring	£2.27 £1.89
26	HV503 28 90-10 Available to backorder	Piston Ring	£13.12 £10.93
27	HV537 26 18-02 Available to backorder	Piston	£123.16 £102.63
28	HV537 06 15-01 Available to backorder	Heat Deflector	£9.06 £7.55
30	HV501 81 99-01 Available to backorder	Screw	£2.06 £1.72
32	HV537 31 25-01 Available to backorder	Hose Clamp	£0.74 £0.62
33	HV537 21 76-01 Available to backorder	Hose	£10.92 £9.10
