Husqvarna 356 BF - X-SERIES 2004-2014 - Carburetor Details

Description

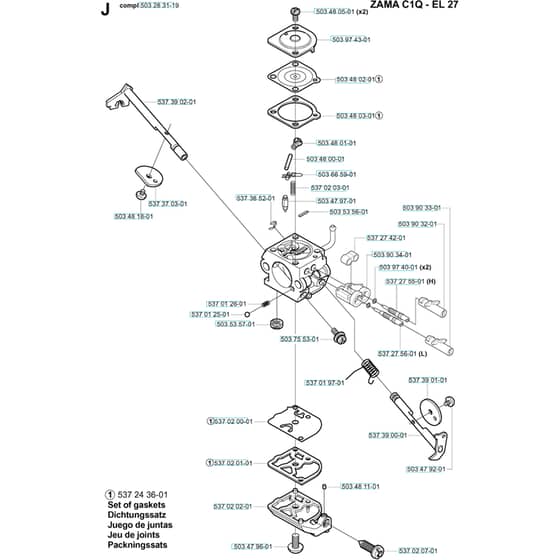

Husqvarna 356 BF - X-SERIES 2004-2014 - Carburetor Details - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV537 39 02-01 Available to backorder	Shaft Assy	£22.78 £18.98
3	HV537 37 03-01 Available to backorder	Valve	£7.39 £6.16
4	HV503 48 18-01 Available to backorder	Screw	£1.28 £1.07
7	HV503 53 57-01 Available to backorder	Strainer	£5.26 £4.38
8	HV537 02 00-01 Available to backorder	Diaphragm Pump	£15.12 £12.60
9	HV537 02 01-01 Available to backorder	Gasket	£4.66 £3.88
10	HV537 02 02-01 Available to backorder	Cover	£24.24 £20.20
12	HV503 48 11-01 Available to backorder	Piece	£6.40 £5.33
13	HV537 02 07-01 Available to backorder	Screw	£1.82 £1.52
14	HV503 47 92-01 Available to backorder	Screw	£1.28 £1.07
16	HV537 01 97-01 Available to backorder	Spring	£2.72 £2.27
17	HV503 75 53-01 Available to backorder	Screw	£1.15 £0.96
19	HV537 27 56-01 Available to backorder	Screw	£17.78 £14.82
21	HV503 97 40-01 Available to backorder	Washer	£2.34 £1.95
22	HV503 90 34-01 Available to backorder	Retainer	£4.74 £3.95
23	HV537 27 42-01 Available to backorder	Boot	£4.52 £3.77
25	HV503 90 33-01 Available to backorder	Limiter Cap	£5.12 £4.27
26	HV503 53 56-01 Available to backorder	Plug Welch	£5.03 £4.19
27	HV503 47 97-01 Available to backorder	Valve	£14.94 £12.45
28	HV537 38 52-01 Available to backorder	Clip	£1.04 £0.87
30	HV503 66 59-01 Available to backorder	Lever	£5.68 £4.73
31	HV503 48 00-01 Available to backorder	Pin Retaining Screw	£4.68 £3.90
33	HV503 48 03-01 Available to backorder	Gasket	£5.64 £4.70
34	HV503 48 02-01 Available to backorder	Diaphragm	£17.86 £14.88
36	HV503 48 05-01 Available to backorder	Screw	£1.56 £1.30
