Husqvarna 353TRIOBRAKE - Chain Brake & Clutch Cover

Description

Husqvarna 353TRIOBRAKE

Model Year -

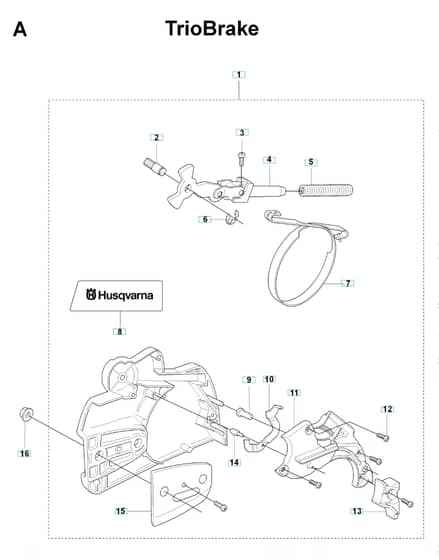

Chain Brake & Clutch Cover - Parts Diagram

	Part No.	Details
1	HV537 10 78-02 Available to backorder	Chain Brake	£79.92 £66.60
2	HV503 89 29-01 Available to backorder	Pin	£1.46 £1.22
4	HV503 89 08-02 Available to backorder	Knee Joint Assy	£27.20 £22.67
5	HV503 46 59-01 Available to backorder	Brake Spring	£5.57 £4.64
6	HV735 31 08-20 Available to backorder	E-Clip	£0.78 £0.65
7	HV537 04 30-02 Available to backorder	Brake Band Assy	£11.54 £9.62
8	HV537 37 04-01 Available to backorder	Label	£2.86 £2.38
9	HV503 85 52-01 Available to backorder	Guide Bushing	£5.75 £4.79
12	HV503 21 70-10 Available to backorder	Screw Ccrpant	£1.61 £1.34
13	HV537 08 90-01 Available to backorder	Wear Protection	£8.34 £6.95
15	HV503 85 66-01 Available to backorder	Cover Plate	£6.40 £5.33
16	HV503 22 00-01 In stock	Hexagon Nut	£2.63 £2.19
