Husqvarna 346XP - Crankcase

Name: Husqvarna 346XP - Crankcase
SKU: 346xp_crankcase-group
Price: 1.07 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna 346XP

Model Year -

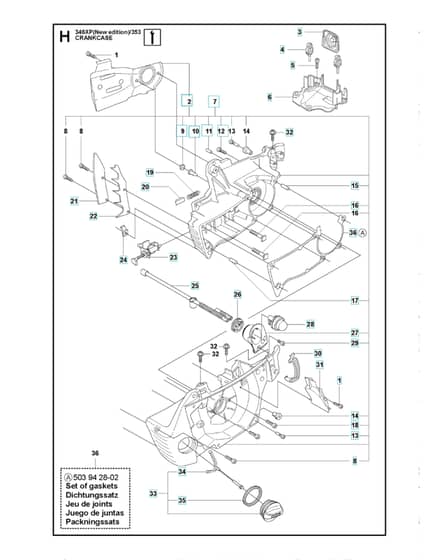

Crankcase - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV503 21 74-12 Available to backorder	Screw Ihsct	£1.82 £1.52
2	HV537 40 56-01 Available to backorder	Chain Guide Platefrom S/N 20071300001 -	£10.36 £8.63
2	HV503 87 56-01 Available to backorder	Chain Guide Plate- Up To S/N 20071299999.	£11.00 £9.17
3	HV537 14 65-01 Available to backorder	Bellows	£17.66 £14.72
4	HV503 86 93-01 Available to backorder	Support	£5.96 £4.97
5	HV503 21 75-12 Available to backorder	Screw Ihscft	£1.82 £1.52
6	HV544 36 07-01 Available to backorder	Carburettor	£9.96 £8.30
7	HV537 17 19-05 Available to backorder	Crankcase Assyfrom S/N 20030500001 -	£266.16 £221.80
8	HV503 20 07-76 Available to backorder	Screw Ihscfm	£3.62 £3.02
9	HV537 40 35-01 Available to backorder	Filter	£4.54 £3.78
10	HV530 02 61-19 Available to backorder	Check Valvefrom S/N 20072500002 -	£6.46 £5.38
10	HV537 04 03-01 Available to backorder	Valve- Up To S/N 20072500001.	£6.62 £5.52
11	HV721 12 07-30 Available to backorder	Grooved Pin	£1.28 £1.07
12	HV503 20 08-70 Available to backorder	Screw Ihscm	£2.34 £1.95
13	HV503 21 51-01 Available to backorder	Screw Ihsctfrom S/N 19994200501 -	£2.34 £1.95
14	HV503 86 92-01 Available to backorder	Bushing	£6.94 £5.78
16	HV503 87 54-01 Available to backorder	Bar Bolt	£5.16 £4.30
18	HV503 20 25-16 Available to backorder	Screw Ihscm	£1.82 £1.52
19	HV503 43 65-01 Available to backorder	Position Spring	£3.48 £2.90
20	HV503 89 24-01 Available to backorder	Lock	£6.34 £5.28
21	HV503 93 04-01 Available to backorder	Bumper	£6.28 £5.23
22	HV503 90 59-01 Available to backorder	Spike	£9.72 £8.10
23	HV537 07 12-01 Available to backorder	Chain Tensionerfrom S/N 19994500081 -	£36.44 £30.37
24	HV503 88 63-01 Available to backorder	Pin	£4.68 £3.90
25	HV544 33 10-02 Available to backorder	Hose	£10.92 £9.10
26	HV504 01 09-01 Available to backorder	Lining	£11.14 £9.28
28	HV503 93 66-01 In stock	Purge	£15.25 £12.71
29	HV544 44 97-01 Available to backorder	Screw Ihsct	£1.56 £1.30
30	HV595 30 30-03 In stock	Snap Lockinggrey. 346Xp	£4.44 £3.70
31	HV503 88 86-01 Available to backorder	Air Nozzle	£7.12 £5.93
32	HV503 21 39-01 Available to backorder	Screw Ihsct	£1.56 £1.30
33	HV537 28 15-02 Available to backorder	Tank Cap Assy	£9.68 £8.07
34	HV503 57 89-01 Available to backorder	Holder	£5.71 £4.76
35	HV501 62 68-01 Available to backorder	Gasket	£4.66 £3.88
36	HV503 94 28-02 Available to backorder	Gasket Kita	£19.94 £16.62
