Husqvarna 345RX - Carburetor & Air Filter

Name: Husqvarna 345RX - Carburetor & Air Filter
SKU: 345rx_carburetor_air_filter-group
Price: 1.3 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 345RX - Carburetor & Air Filter

Description

Husqvarna 345RX

Model Year -

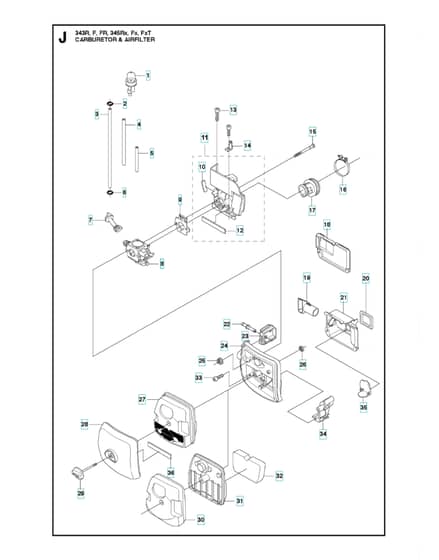

Carburetor & Air Filter - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV503 93 66-01 In stock	Purge	£15.25 £12.71
3	HV581 75 61-23 Available to backorder	Fuel Hosel	£5.52 £4.60
4	HV537 04 24-01 Available to backorder	Fuel Hosel	£6.40 £5.33
6	HV537 18 49-01 Available to backorder	O-Ring	£3.60 £3.00
7	HV537 11 00-01 Available to backorder	Choke Control	£6.46 £5.38
8	HV503 28 31-16 Available to backorder	Carburettorzama C1Q-El21	£101.04 £84.20
8	HV503 28 31-18 Available to backorder	Carburettorzama C1Q-El23 343R South America	£101.04 £84.20
9	HV537 11 01-01 Available to backorder	Spacer	£3.48 £2.90
10	HV537 22 96-02 Available to backorder	Moulding	£1.58 £1.32
11	HV537 30 02-01 Available to backorder	Insulation Wall	£13.58 £11.32
12	HV537 22 96-01 Available to backorder	Moulding	£7.20 £6.00
15	HV544 08 20-02 Available to backorder	Screw	£2.84 £2.37
18	HV537 27 61-01 Available to backorder	Mufflerfr. R. Rx	£7.76 £6.47
20	HV537 30 93-01 Available to backorder	Sealingf. Fx. Fxt	£7.20 £6.00
22	HV537 28 46-01 Available to backorder	Nipple	£9.18 £7.65
23	HV537 16 59-01 Available to backorder	Grommet	£3.64 £3.03
24	HV503 95 81-01 Available to backorder	Filter Holder	£18.76 £15.63
25	HV731 71 14-51 Available to backorder	Hexagon Nut Flange	£1.82 £1.52
26	HV731 23 14-05 Available to backorder	Hexagon Nut	£1.56 £1.30
27	HV537 38 11-01 In stock	Filterµ80 Black F. Fx. Fxt	£28.38 £23.65
28	HV537 30 76-02 Available to backorder	Filter Cover Assy	£21.36 £17.80
29	HV537 21 32-12 Available to backorder	Knob	£7.12 £5.93
30	HV503 95 80-01 Available to backorder	Hub Capr. Rx. Fr	£10.36 £8.63
31	HV503 95 79-01 Available to backorder	Retainerr. Rx. Fr	£9.06 £7.55
32	HV537 42 71-01 In stock	Air Filterr. Rx. Fr	£9.22 £7.68
33	HV503 20 03-20 Available to backorder	Screw Ihscfm	£1.92 £1.60
34	HV537 14 13-01 Available to backorder	Chisel Guide	£2.58 £2.15
35	HV537 14 14-01 Available to backorder	Hub Capf. Fx. Fxt. Fr	£9.18 £7.65
36	HV537 22 96-03 Available to backorder	Moulding	£6.20 £5.17
