Husqvarna 345Fxt - Carburetor

Name: Husqvarna 345Fxt - Carburetor
SKU: 345fxt_carburetor-group
Price: 0.96 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna 345Fxt

Model Year -

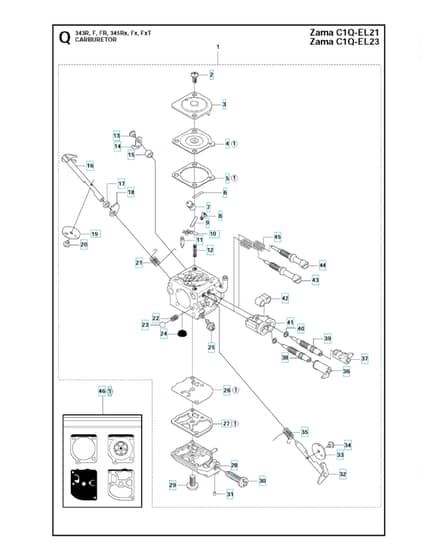

Carburetor - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV503 28 31-16 Available to backorder	Carburettorzama C1Q-El21	£101.04 £84.20
1	HV503 28 31-18 Available to backorder	Carburettorzama C1Q-El23 343R South America	£101.04 £84.20
2	HV503 48 05-01 Available to backorder	Screw	£1.56 £1.30
4	HV503 48 02-01 Available to backorder	Diaphragm	£17.86 £14.88
5	HV503 48 03-01 Available to backorder	Gasket	£5.64 £4.70
6	HV503 53 56-01 Available to backorder	Plug Welch	£5.03 £4.19
7	HV544 11 49-01 Available to backorder	Nozzle Assy	£27.52 £22.93
9	HV503 48 00-01 Available to backorder	Pin Retaining Screw	£4.68 £3.90
10	HV503 66 59-01 Available to backorder	Lever	£5.68 £4.73
11	HV503 47 97-01 Available to backorder	Valve	£14.94 £12.45
13	HV503 47 90-01 Available to backorder	Screw	£1.28 £1.07
14	HV537 01 98-01 Available to backorder	Lever	£6.98 £5.82
16	HV537 02 09-01 Available to backorder	Shaft Assy	£22.78 £18.98
17	HV503 48 19-01 Available to backorder	Collar	£7.76 £6.47
18	HV537 04 90-01 Available to backorder	Lever	£5.68 £4.73
19	HV537 02 11-01 Available to backorder	Valve	£9.24 £7.70
20	HV503 48 18-01 Available to backorder	Screw	£1.28 £1.07
21	HV537 02 10-01 Available to backorder	Spring	£3.36 £2.80
24	HV503 53 57-01 Available to backorder	Strainer	£5.26 £4.38
25	HV503 75 53-01 Available to backorder	Screw	£1.15 £0.96
26	HV537 02 00-01 Available to backorder	Diaphragm Pump	£15.12 £12.60
27	HV537 02 01-01 Available to backorder	Gasket	£4.66 £3.88
28	HV537 02 02-01 Available to backorder	Cover	£24.24 £20.20
30	HV537 02 07-01 Available to backorder	Screw	£1.82 £1.52
31	HV503 48 11-01 Available to backorder	Piece	£6.40 £5.33
34	HV503 47 92-01 Available to backorder	Screw	£1.28 £1.07
36	HV503 90 33-01 Available to backorder	Limiter Caph Zama C1Q-El21	£5.12 £4.27
38	HV537 27 56-01 Available to backorder	Screwh Zama C1Q-El21	£17.78 £14.82
40	HV503 97 40-01 Available to backorder	Washerzama C1Q-El21	£2.34 £1.95
41	HV503 90 34-01 Available to backorder	Retainerzama C1Q-El21	£4.74 £3.95
42	HV537 27 42-01 Available to backorder	Bootzama C1Q-El21	£4.52 £3.77
44	HV537 38 69-01 Available to backorder	Screwzama C1Q-El23	£1.82 £1.52
45	HV503 48 08-01 Available to backorder	Springzama C1Q-El23	£3.48 £2.90
46	HV537 24 36-01 Available to backorder	Gasket Kitgasket Kit	£12.84 £10.70
