Husqvarna 345E - 2006-Current - Cylinder Piston

Name: Husqvarna 345E - 2006-Current - Cylinder Piston
SKU: 345e_2006_current_cylinder_piston-group
Price: 0.6 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 345E - 2006-Current - Cylinder Piston

Description

Husqvarna 345E

Model Year - 2006-Current

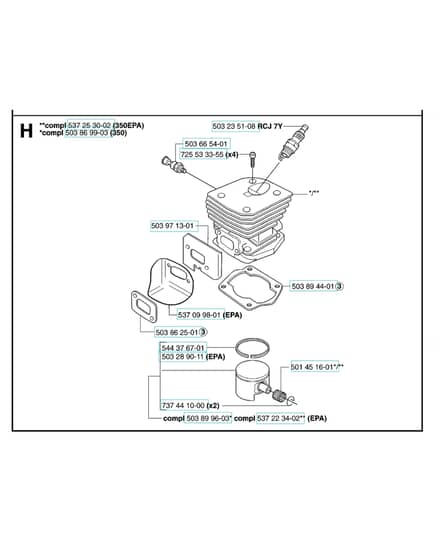

Cylinder Piston - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	4338 In stock	Non-gen Cylinder Assy	£33.59 £27.99
0	HV503 92 60-02 Available to backorder	Cover Plate	£7.76 £6.47
0	HV544 26 55-01 Available to backorder	Piston Ring	£13.12 £10.93
0	HV503 55 22-01 Available to backorder	Plug	£8.22 £6.85
0	HV503 20 05-32 Available to backorder	Screw Ihscm	£2.76 £2.30
0	HV503 87 02-76 Available to backorder	Cylinder Assy	£224.88 £187.40
0	HV503 90 73-71 Available to backorder	Piston Assy	£108.08 £90.07
501451601	HV501 45 16-01 In stock	Needle Bearing	£10.98 £9.15
503235108	HV503 23 51-08 In stock	Spark Plug	£3.72 £3.10
503665401	HV503 66 54-01 Available to backorder	Decompression Valve	£17.04 £14.20
503862501	HV503 86 25-01 Available to backorder	Gasket	£5.64 £4.70
503869903	HV503 86 99-03 Available to backorder	Cylinder Assy	£306.96 £255.80
503894401	HV503 89 44-01 In stock	Gasket	£5.12 £4.27
503899603	HV503 89 96-03 Available to backorder	Piston Assy	£113.32 £94.43
503971301	HV503 97 13-01 Available to backorder	Heat Deflector	£7.76 £6.47
537099801	HV537 09 98-01 Available to backorder	Heat Deflector	£7.76 £6.47
544376701	HV544 37 67-01 Available to backorder	Piston Ring	£13.12 £10.93
725533355	HV725 53 33-55 In stock	Screw Ihscm	£1.92 £1.60
737441000	HV737 44 10-00 Available to backorder	Snap Ring	£0.72 £0.60
