Husqvarna 345 - 2007-Current - Cylinder Piston

Name: Husqvarna 345 - 2007-Current - Cylinder Piston
SKU: 345_2007_current_cylinder_piston-group
Price: 0.62 GBP
Availability: InStock

Part No. 345_2007_current_cylinder_piston-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 345 - 2007-Current - Cylinder Piston

Description

Husqvarna 345

Model Year - 2007-Current

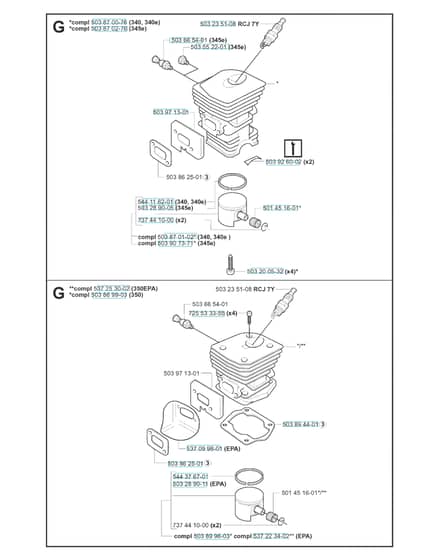

Cylinder Piston - Parts Diagram

	Part No.	Details
1	4338 In stock	Non-gen Cylinder Assy	£24.84 £20.70
501451601	HV501 45 16-01 In stock	Needle Bearing	£11.17 £9.31
503200532	HV503 20 05-32 Available to backorder	Screw Ihscm	£2.71 £2.26
503235108	HV503 23 51-08 In stock	Spark Plug	£3.60 £3.00
503289005	HV503 28 90-05 Available to backorder	Piston Ring	£12.97 £10.81
503552201	HV503 55 22-01 Available to backorder	Plug	£8.06 £6.72
503665401	HV503 66 54-01 Available to backorder	Decompression Valve	£17.32 £14.43
503862501	HV503 86 25-01 Available to backorder	Gasket	£5.38 £4.48
503869903	HV503 86 99-03 Available to backorder	Cylinder Assy	£329.16 £274.30
503870276	HV503 87 02-76 Available to backorder	Cylinder Assy	£229.44 £191.20
503894401	HV503 89 44-01 In stock	Gasket	£5.04 £4.20
503899603	HV503 89 96-03 Available to backorder	Piston Assy	£108.48 £90.40
503907371	HV503 90 73-71 Available to backorder	Piston Assy	£103.44 £86.20
503926002	HV503 92 60-02 Available to backorder	Cover Plate	£7.70 £6.42
503971301	HV503 97 13-01 Available to backorder	Heat Deflector	£7.82 £6.52
537099801	HV537 09 98-01 Available to backorder	Heat Deflector	£7.70 £6.42
544376701	HV544 37 67-01 Available to backorder	Piston Ring	£12.97 £10.81
725533355	HV725 53 33-55 In stock	Screw Ihscm	£2.00 £1.67
737441000	HV737 44 10-00 Available to backorder	Snap Ring	£0.74 £0.62
