Husqvarna 345 - 2007-Current - Carburetor & Air Filter

Name: Husqvarna 345 - 2007-Current - Carburetor & Air Filter
SKU: 345_2007_current_carburetor_air_filter-group
Price: 0.98 GBP
Availability: InStock

Part No. 345_2007_current_carburetor_air_filter-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 345 - 2007-Current - Carburetor & Air Filter

Description

Husqvarna 345

Model Year - 2007-Current

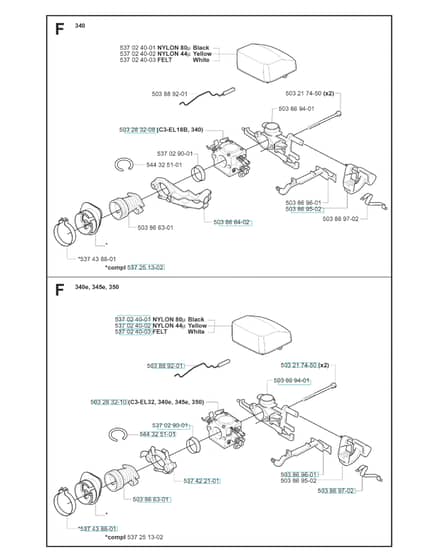

Carburetor & Air Filter - Parts Diagram

	Part No.	Details
503217450	HV503 21 74-50 Available to backorder	Screw Ihsct	£3.07 £2.56
503283208	HV503 28 32-08 Available to backorder	Carburettor	£124.68 £103.90
503866402	HV503 86 64-02 Available to backorder	Flange	£4.52 £3.77
503869401	HV503 86 94-01 Available to backorder	Inlet Bend	£9.62 £8.02
503869502	HV503 86 95-02 Available to backorder	Stop Switch	£6.68 £5.57
503869601	HV503 86 96-01 Available to backorder	Choke Control	£6.52 £5.43
503869702	HV503 86 97-02 Available to backorder	Spring	£3.32 £2.77
503889201	HV503 88 92-01 Available to backorder	Throttle Rod	£12.37 £10.31
537024001	HV537 02 40-01 Available to backorder	Air Filter	£22.48 £18.73
537024002	HV537 02 40-02 Available to backorder	Air Filter	£23.82 £19.85
537024003	HV537 02 40-03 In stock	Air Filter	£25.85 £21.54
537029001	HV537 02 90-01 Available to backorder	Support Ring	£7.06 £5.88
537251302	HV537 25 13-02 In stock	Insulation Wall	£11.48 £9.57
537438801	HV537 43 88-01 Available to backorder	Clip	£1.18 £0.98
544325101	HV544 32 51-01 Available to backorder	Hose	£4.69 £3.91
537422101	HV544 32 83-01 Available to backorder	Flange	£14.36 £11.97
