Husqvarna 343FRM - Carburetor Details

Name: Husqvarna 343FRM - Carburetor Details
SKU: 343frm_carburetor_details-group
Price: 0.94 GBP
Availability: InStock

Part No. 343frm_carburetor_details-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna 343FRM

Model Year -

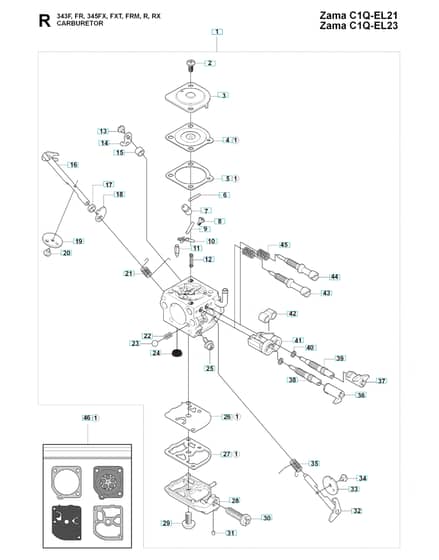

Carburetor Details - Parts Diagram

	Part No.	Details
1	HV503 28 31-16 Available to backorder	Carburettor	£96.72 £80.60
1	HV503 28 31-18 Available to backorder	Carburettor	£96.72 £80.60
2	HV503 48 05-01 Available to backorder	Screw	£1.56 £1.30
4	HV503 48 02-01 Available to backorder	Diaphragm	£17.69 £14.74
5	HV503 48 03-01 Available to backorder	Gasket	£5.59 £4.66
6	HV503 53 56-01 Available to backorder	Plug Welch	£5.17 £4.31
7	HV544 11 49-01 Available to backorder	Nozzle Assy	£27.26 £22.72
9	HV503 48 00-01 Available to backorder	Pin Retaining Screw	£4.64 £3.87
10	HV503 66 59-01 Available to backorder	Lever	£5.63 £4.69
11	HV503 47 97-01 Available to backorder	Valve	£14.81 £12.34
13	HV503 47 90-01 Available to backorder	Screw	£1.28 £1.07
14	HV537 01 98-01 Available to backorder	Lever	£6.91 £5.76
16	HV537 02 09-01 Available to backorder	Shaft Assy	£22.57 £18.81
17	HV503 48 19-01 Available to backorder	Collar	£7.70 £6.42
18	HV537 04 90-01 Available to backorder	Lever	£5.63 £4.69
19	HV537 02 11-01 Available to backorder	Valve	£9.16 £7.63
20	HV503 48 18-01 Available to backorder	Screw	£1.28 £1.07
21	HV537 02 10-01 Available to backorder	Spring	£3.32 £2.77
24	HV503 53 57-01 Available to backorder	Strainer	£5.44 £4.53
25	HV503 75 53-01 Available to backorder	Screw	£1.13 £0.94
26	HV537 02 00-01 Available to backorder	Diaphragm Pump	£14.98 £12.48
27	HV537 02 01-01 Available to backorder	Gasket	£4.63 £3.86
28	HV537 02 02-01 Available to backorder	Cover	£24.00 £20.00
30	HV537 02 07-01 Available to backorder	Screw	£1.79 £1.49
31	HV503 48 11-01 Available to backorder	Piece	£6.36 £5.30
34	HV503 47 92-01 Available to backorder	Screw	£1.28 £1.07
36	HV503 90 33-01 Available to backorder	Limiter Cap	£5.05 £4.21
38	HV537 27 56-01 Available to backorder	Screw	£17.62 £14.68
40	HV503 97 40-01 Available to backorder	Washer	£2.30 £1.92
41	HV503 90 34-01 Available to backorder	Retainer	£4.64 £3.87
42	HV537 27 42-01 Available to backorder	Boot	£4.56 £3.80
44	HV537 38 69-01 Available to backorder	Screw	£1.79 £1.49
45	HV503 48 08-01 Available to backorder	Spring	£3.46 £2.88
46	HV537 24 36-01 In stock	Gasket Kit	£13.44 £11.20
