Husqvarna 343F - 2011-Current - Carburetor & Air Filter

Description

Husqvarna 343F

Model Year - 2011-Current

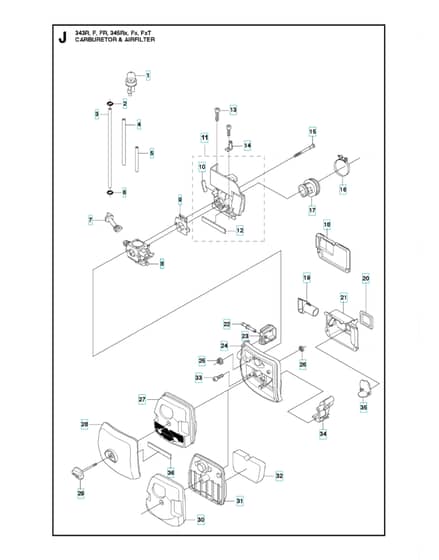

Carburetor & Air Filter - Parts Diagram

	Part No.	Details
1	HV503 93 66-01 In stock	Purge	£15.11 £12.59
3	HV581 75 61-23 Available to backorder	Fuel Hosel	£5.59 £4.66
4	HV537 04 24-01 Available to backorder	Fuel Hosel	£6.46 £5.38
6	HV537 18 49-01 Available to backorder	O-Ring	£3.82 £3.18
7	HV537 11 00-01 Available to backorder	Choke Control	£6.34 £5.28
8	HV503 28 31-18 Available to backorder	Carburettorzama C1Q-El23 343R South America	£96.72 £80.60
8	HV503 28 31-16 Available to backorder	Carburettorzama C1Q-El21	£96.72 £80.60
9	HV537 11 01-01 Available to backorder	Spacer	£2.98 £2.48
10	HV537 22 96-02 Available to backorder	Moulding	£1.56 £1.30
11	HV537 30 02-01 Available to backorder	Insulation Wall	£11.66 £9.72
12	HV537 22 96-01 Available to backorder	Moulding	£7.14 £5.95
15	HV544 08 20-02 Available to backorder	Screw	£2.83 £2.36
18	HV537 27 61-01 Available to backorder	Mufflerfr. R. Rx	£7.70 £6.42
20	HV537 30 93-01 Available to backorder	Sealingf. Fx. Fxt	£7.14 £5.95
22	HV537 28 46-01 Available to backorder	Nipple	£9.08 £7.57
23	HV537 16 59-01 Available to backorder	Grommet	£3.70 £3.08
24	HV503 95 81-01 Available to backorder	Filter Holder	£18.60 £15.50
25	HV731 71 14-51 Available to backorder	Hexagon Nut Flange	£1.84 £1.53
26	HV731 23 14-05 Available to backorder	Hexagon Nut	£1.56 £1.30
27	HV537 38 11-01 In stock	Filterµ80 Black F. Fx. Fxt	£31.15 £25.96
28	HV537 30 76-02 Available to backorder	Filter Cover Assy	£21.16 £17.63
29	HV537 21 32-12 Available to backorder	Knob	£7.06 £5.88
30	HV503 95 80-01 Available to backorder	Hub Capr. Rx. Fr	£10.26 £8.55
31	HV503 95 79-01 Available to backorder	Retainerr. Rx. Fr	£8.98 £7.48
32	HV537 42 71-01 In stock	Air Filterr. Rx. Fr	£9.89 £8.24
33	HV503 20 03-20 Available to backorder	Screw Ihscfm	£2.05 £1.71
34	HV537 14 13-01 Available to backorder	Chisel Guide	£2.56 £2.13
35	HV537 14 14-01 Available to backorder	Hub Capf. Fx. Fxt. Fr	£9.08 £7.57
36	HV537 22 96-03 Available to backorder	Moulding	£6.14 £5.12
