Husqvarna 340E - 2006-Current - Clutch & Oil Pump

Name: Husqvarna 340E - 2006-Current - Clutch & Oil Pump
SKU: 340e_2006_current_clutch_oil_pump-group
Price: 1.07 GBP
Availability: InStock

Part No. 340e_2006_current_clutch_oil_pump-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 340E - 2006-Current - Clutch & Oil Pump

Description

Husqvarna 340E

Model Year - 2006-Current

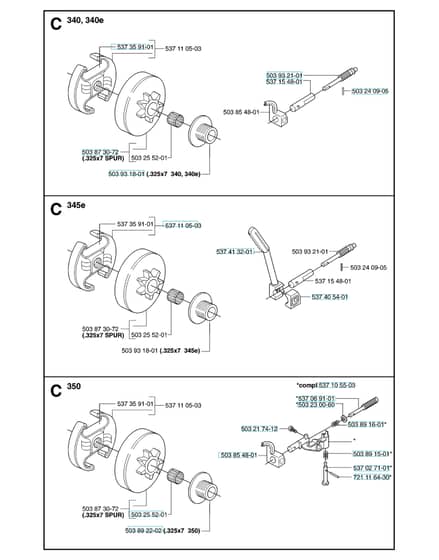

Clutch & Oil Pump - Parts Diagram

	Part No.	Details
503217412	HV503 21 74-12 Available to backorder	Screw Ihsct	£1.82 £1.52
503230060	HV503 23 00-60 Available to backorder	Washer	£2.06 £1.72
503240905	HV503 24 09-05 Available to backorder	Needle Roller	£1.31 £1.09
503255201	HV599 53 15-01 In stock	Needle Bearing	£10.88 £9.07
503854801	HV503 85 48-01 Available to backorder	Sealing	£7.37 £6.14
503891501	HV503 89 15-01 Available to backorder	Spring	£2.80 £2.33
503891601	HV503 89 16-01 Available to backorder	Spring	£3.32 £2.77

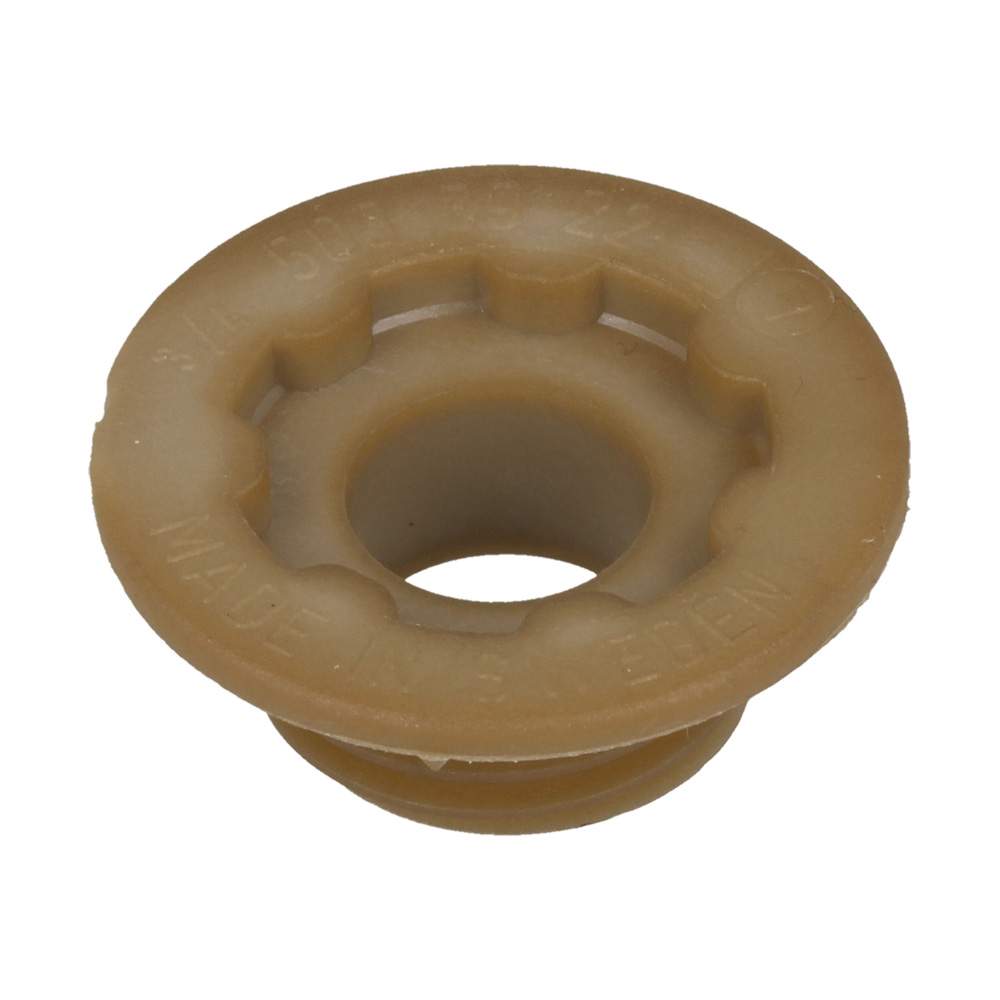

503892202	HV503 89 22-02 Available to backorder	Pump Pinion	£9.08 £7.57
503931801	HV503 93 18-01 Available to backorder	Pump Pinion	£9.40 £7.83
537027101	HV537 02 71-01 Available to backorder	Adjuster	£6.40 £5.33
537110503	HV537 11 05-03 Available to backorder	Clutch Assy	£62.28 £51.90
537154801	HV537 15 48-01 Available to backorder	Pump Cylinder	£6.26 £5.22
537359101	HV537 35 91-01 Available to backorder	Clutch Spring	£5.77 £4.81
537405401	HV537 40 54-01 Available to backorder	Sealing	£5.02 £4.18

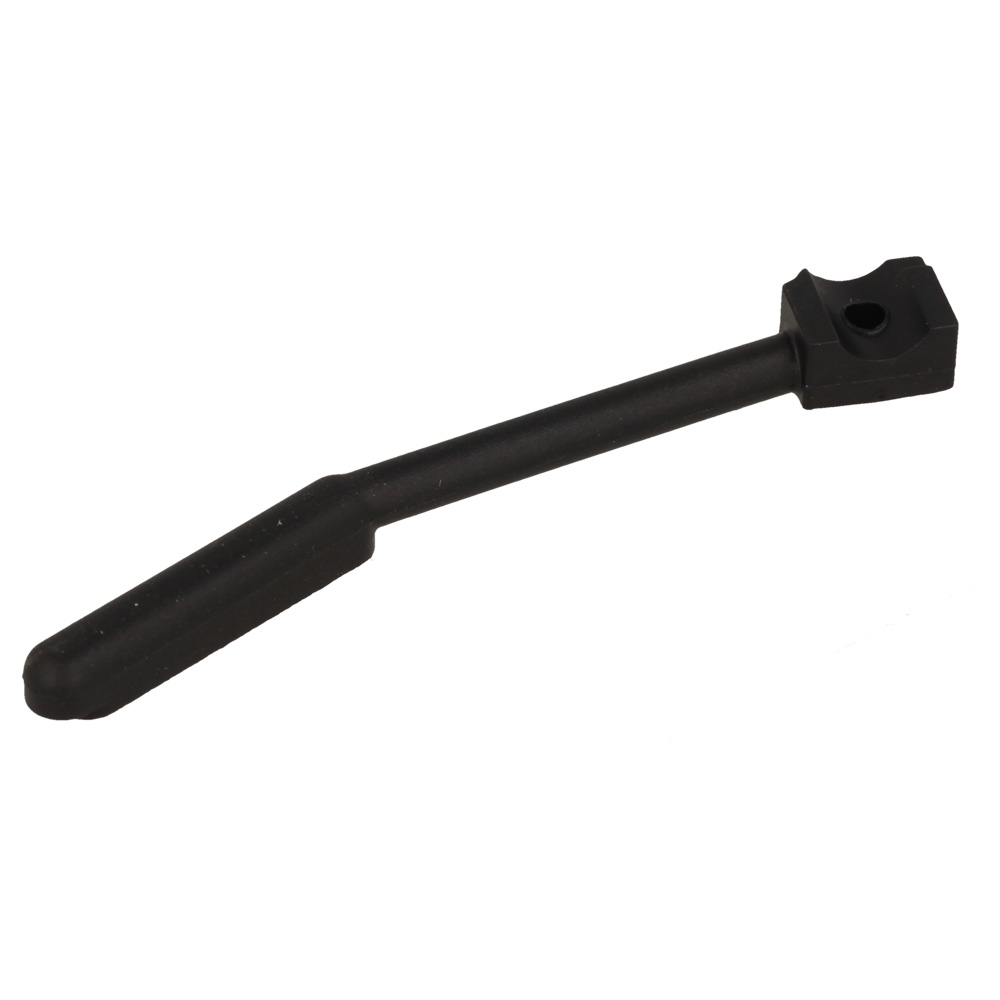

537413201	HV537 41 32-01 Available to backorder	Oil Pressure Hose	£12.86 £10.72
721116430	HV721 11 64-30 Available to backorder	Grooved Pin	£1.28 £1.07
