Husqvarna 340 - 2007-Current - Chain Brake & Clutch Cover

Description

Husqvarna 340

Model Year - 2007-Current

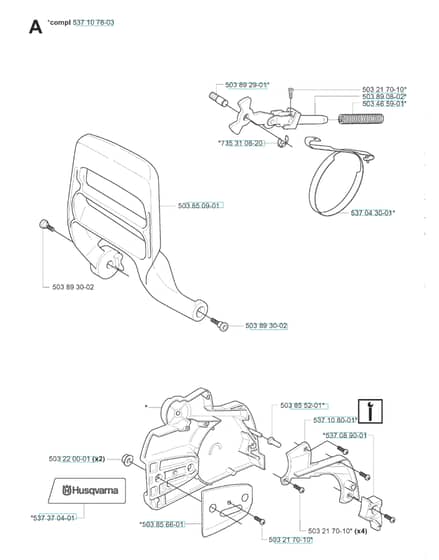

Chain Brake & Clutch Cover - Parts Diagram

	Part No.	Details
503217010	HV503 21 70-10 Available to backorder	Screw Ccrpant	£1.61 £1.34
503220001	HV503 22 00-01 In stock	Hexagon Nut	£2.63 £2.19
503465901	HV503 46 59-01 Available to backorder	Brake Spring	£5.57 £4.64
503850901	HV503 85 09-01 In stock	Hand Guard	£39.04 £32.53
503855201	HV503 85 52-01 Available to backorder	Guide Bushing	£5.75 £4.79
503856601	HV503 85 66-01 Available to backorder	Cover Plate	£6.40 £5.33
503890802	HV503 89 08-02 Available to backorder	Knee Joint Assy	£27.20 £22.67
503892901	HV503 89 29-01 Available to backorder	Pin	£1.46 £1.22
537043001	HV537 04 30-03 In stock	Brake Band Assy	£11.92 £9.93
537089001	HV537 08 90-01 Available to backorder	Wear Protection	£8.34 £6.95
537107803	HV537 10 78-03 Available to backorder	Chain Brake	£72.72 £60.60
537108001	HV537 10 80-01 Available to backorder	Hub Cap	£8.34 £6.95
537370401	HV537 37 04-01 Available to backorder	Label	£2.86 £2.38
735310820	HV735 31 08-20 Available to backorder	E-Clip	£0.78 £0.65
