Husqvarna 339XP - 2010-Current - Cylinder Piston

Description

Husqvarna 339XP

Model Year - 2010-Current

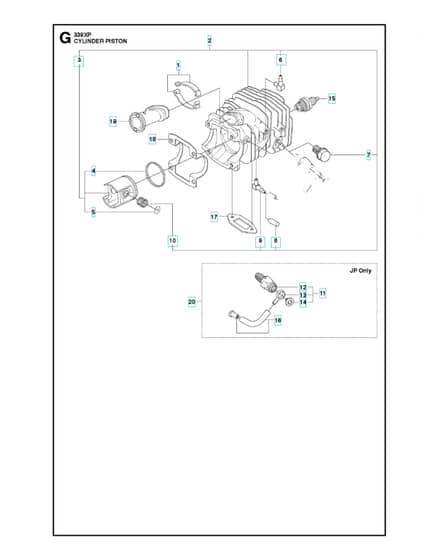

Cylinder Piston - Parts Diagram

	Part No.	Details
1	HV537 16 73-01 Available to backorder	Clip	£1.94 £1.62
2	HV537 13 20-01 Available to backorder	Cylinder	£290.76 £242.30
3	HV537 13 27-02 Available to backorder	Piston	£91.56 £76.30
5	HV737 44 10-00 Available to backorder	Snap Ring	£0.74 £0.62
7	HV503 55 22-01 Available to backorder	Plug	£8.06 £6.72
8	HV537 18 00-01 Available to backorder	Protective Cap	£3.46 £2.88
9	HV504 34 00-04 Available to backorder	Fitting	£7.70 £6.42
10	HV503 41 41-01 Available to backorder	Needle Bearing	£11.15 £9.29
14	HV537 22 29-01 Available to backorder	Screw	£1.79 £1.49
15	HV503 23 51-08 In stock	Spark Plugrcj-7Y	£3.60 £3.00
17	HV503 82 11-01 Available to backorder	Gasket	£5.54 £4.62
18	HV537 10 04-01 Available to backorder	Gasket	£8.86 £7.38
19	HV537 15 77-01 Available to backorder	Inlet Pipe	£17.94 £14.95
