Husqvarna 338XPT - 2010-Current - Carburetor Details

Description

Husqvarna 338XPT

Model Year - 2010-Current

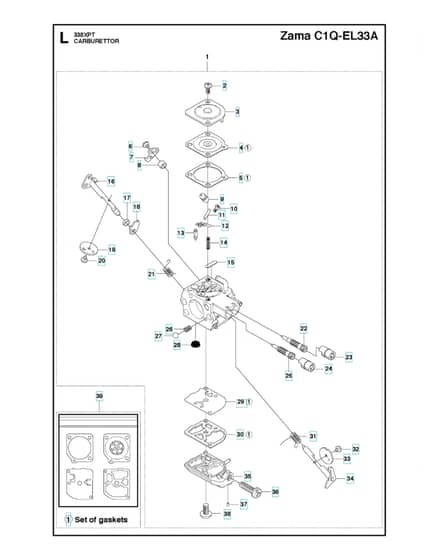

Carburetor Details - Parts Diagram

	Part No.	Details
1	HV544 16 09-01 Available to backorder	Carburettorzama C1Q-El33A	£83.16 £69.30
2	HV503 48 05-01 Available to backorder	Screw	£1.56 £1.30
4	HV537 04 89-01 Available to backorder	Diaphragm	£21.10 £17.58
5	HV537 02 04-01 Available to backorder	Gasket	£4.63 £3.86
6	HV503 47 90-01 Available to backorder	Screw	£1.28 £1.07
11	HV503 48 00-01 Available to backorder	Pin Retaining Screw	£4.64 £3.87
12	HV503 66 59-01 Available to backorder	Lever	£5.63 £4.69
13	HV503 47 97-01 Available to backorder	Valve	£14.81 £12.34
14	HV537 27 34-01 Available to backorder	Spring	£3.32 £2.77
15	HV503 53 56-01 Available to backorder	Plug Welch	£5.17 £4.31
28	HV503 53 57-01 Available to backorder	Strainer	£5.44 £4.53
29	HV537 02 00-01 Available to backorder	Diaphragm Pump	£14.98 £12.48
30	HV537 02 01-01 Available to backorder	Gasket	£4.63 £3.86
31	HV537 01 97-01 Available to backorder	Spring	£2.74 £2.28
32	HV503 48 18-01 Available to backorder	Screw	£1.28 £1.07
37	HV503 48 11-01 Available to backorder	Piece	£6.36 £5.30
39	HV531 00 45-52 In stock	Gasket Kit1	£13.79 £11.49
