Husqvarna 336FRD-336RK - Carburetor & Air Filter

Description

Husqvarna 336FRD-336RK

Model Year -

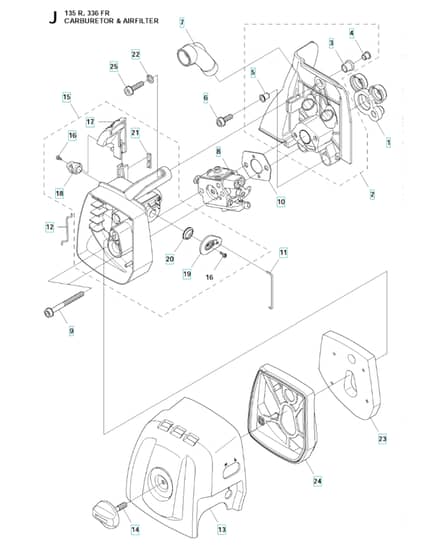

Carburetor & Air Filter - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV537 33 43-01 Available to backorder	Inlet Pipe	£11.64 £9.70
2	HV537 37 12-02 Available to backorder	Insulation Wall	£16.82 £14.02
3	HV537 37 11-01 Available to backorder	Sleeve	£5.58 £4.65
4	HV544 01 91-01 Available to backorder	Tubular Rivet	£5.45 £4.54
5	HV537 37 38-03 Available to backorder	Tubular Rivet	£5.68 £4.73
6	HV503 20 03-16 Available to backorder	Screw Ihscfm	£2.03 £1.69
7	HV537 34 13-01 Available to backorder	Air Duct	£6.46 £5.38
8	HV575 72 90-01 In stock	Carburettorzama C1Q-El45	£76.01 £63.34
9	HV503 21 75-50 Available to backorder	Screw Ihscft	£3.04 £2.53
10	HV503 49 71-01 Available to backorder	Gasket	£2.96 £2.47
11	HV537 34 90-01 Available to backorder	Lever	£2.36 £1.97
12	HV544 37 27-01 Available to backorder	Sleeving Bracket	£8.23 £6.86
13	HV575 84 18-01 Available to backorder	Filter Cover	£10.48 £8.73
14	HV537 21 32-09 Available to backorder	Knob	£6.06 £5.05
15	HV575 86 37-02 Available to backorder	Filter Holder Assy	£27.18 £22.65
16	HV503 21 29-06 Available to backorder	Screw Ccrpant	£1.28 £1.07
17	HV575 84 15-01 Available to backorder	Choke Control	£7.86 £6.55
18	HV575 84 16-02 Available to backorder	Choke Lever	£6.46 £5.38
19	HV544 01 46-01 Available to backorder	Lever	£8.40 £7.00
20	HV544 01 47-01 Available to backorder	Bellows	£4.06 £3.38
21	HV544 02 58-01 Available to backorder	Bar	£1.84 £1.53
22	HV503 23 10-06 Available to backorder	Washer	£2.34 £1.95
23	HV576 21 53-01 In stock	Filter	£14.90 £12.42
24	HV575 86 38-01 Available to backorder	Frame	£18.34 £15.28
25	HV503 20 03-20 Available to backorder	Screw Ihscfm	£1.92 £1.60
