Husqvarna 336FR - Bevel Gear

Husqvarna 336FR - Bevel Gear

Description

Husqvarna 336FR

Model Year -

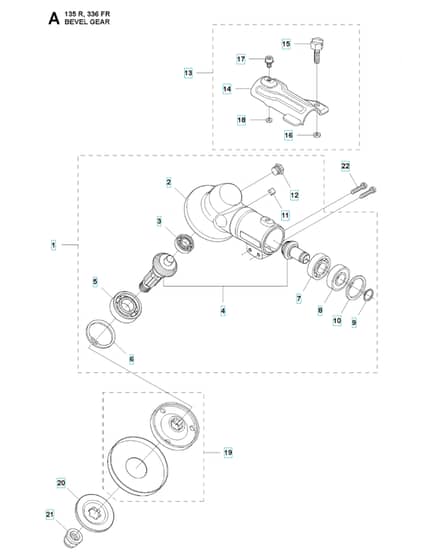

Bevel Gear - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HV544 21 64-01 Available to backorder	Gear		£208.06 £173.38
	2		HV537 29 59-02 Available to backorder	Gear Housing		£89.92 £74.93
	3		HV738 21 99-00 Available to backorder	Ball Bearing		£6.36 £5.30
	4		HV505 13 33-01 Available to backorder	Spare Parts Kit		£50.34 £41.95
	5		HV503 25 28-01 Available to backorder	Ball Bearing		£7.28 £6.07
	6		HV735 31 31-10 Available to backorder	Circlip		£0.77 £0.64
	7		HV738 21 01-10 Available to backorder	Ball Bearing		£6.36 £5.30
	8		HV738 21 01-12 Available to backorder	Ball Bearing		£6.48 £5.40
	9		HV735 31 14-00 Available to backorder	Circlip		£0.77 £0.64
	10		HV735 31 28-10 Available to backorder	Circlip		£3.68 £3.07
	12		HV503 20 15-01 Available to backorder	Screw		£5.82 £4.85
	15		HV537 18 95-01 Available to backorder	Screw		£4.02 £3.35
	16		HV732 21 16-01 Available to backorder	Lock Nut		£1.82 £1.52
	17		HV503 20 07-10 Available to backorder	Screw Ihscfm		£1.70 £1.42
	18		HV574 03 95-01 Available to backorder	Lock Nutlocking Ring		£1.56 £1.30
	19		HV537 35 14-02 Available to backorder	Driver		£51.66 £43.05
	21		HV502 29 11-01 Available to backorder	Blade Nut		£5.68 £4.73
	22		HV503 20 03-25 Available to backorder	Screw Ihscfm		£2.34 £1.95

Description

Husqvarna 336FR

Model Year -

Bevel Gear - Parts Diagram
