Husqvarna 334T - 2006-Current - Chain Brake & Clutch Cover

Name: Husqvarna 334T - 2006-Current - Chain Brake & Clutch Cover
SKU: 334t_2006_current_chain_brake_clutch_cover-group
Price: 0.65 GBP
Availability: InStock

Part No. 334t_2006_current_chain_brake_clutch_cover-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 334T - 2006-Current - Chain Brake & Clutch Cover

Description

Husqvarna 334T

Model Year - 2006-Current

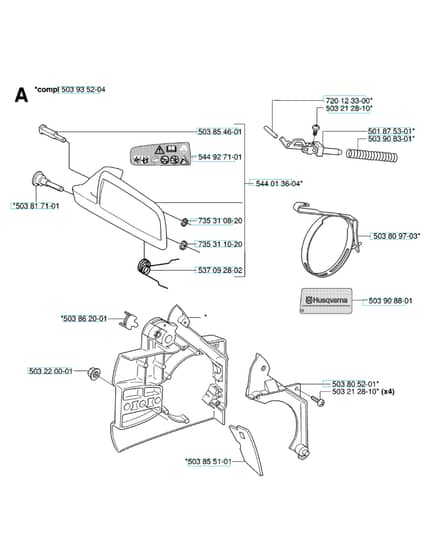

Chain Brake & Clutch Cover - Parts Diagram

	Part No.	Details
501875301	HV501 87 53-01 Available to backorder	Knee Joint Assy	£28.20 £23.50
503212810	HV503 21 28-10 Available to backorder	Screw Ccrpant	£1.32 £1.10
503220001	HV503 22 00-01 In stock	Hexagon Nut	£2.63 £2.19
503805201	HV503 80 52-01 Available to backorder	Hub Cap	£7.66 £6.38
503809703	HV503 80 97-03 Available to backorder	Brake Band Assy	£11.54 £9.62
503817101	HV503 81 71-01 Available to backorder	Shaft Pivot	£14.93 £12.44
503854601	HV503 85 46-01 Available to backorder	Pivot Pin	£15.59 £12.99
503862001	HV503 86 20-01 Available to backorder	Spring Guide	£5.46 £4.55
503908301	HV503 90 83-01 Available to backorder	Brake Spring	£4.86 £4.05
544013604	HV544 01 36-04 In stock	Hand Guard Assy	Was £37.22 £31.02 Special Price £24.42 £20.35
720123300	HV720 12 33-00 Available to backorder	Parallel Pin	£1.28 £1.07
735310820	HV735 31 08-20 Available to backorder	E-Clip	£0.78 £0.65
735311020	HV735 31 10-20 Available to backorder	E-Clip	£2.09 £1.74
