Husqvarna 32RLC - 1990-1 - Engine

Name: Husqvarna 32RLC - 1990-1 - Engine
SKU: 32rlc_1990_1_engine-group
Price: 1.12 GBP
Availability: InStock

Part No. 32rlc_1990_1_engine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna 32RLC

Model Year - 1990-1

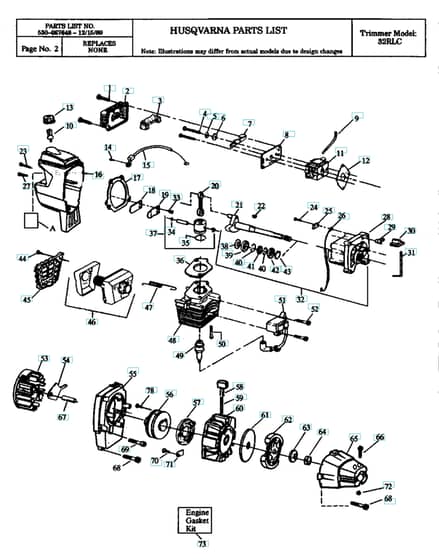

Engine - Parts Diagram

	Part No.	Details
3	HV530 02 75-30 Available to backorder	Air Filter	£8.09 £6.74
4	HV530 01 58-49 Available to backorder	Screw	£3.07 £2.56
6	HV530 01 52-54 Available to backorder	Spring	£3.32 £2.77
8	HV530 02 75-27 Available to backorder	Plate	£5.46 £4.55
9	HV530 06 92-47 In stock	Hose	£9.36 £7.80
12	HV530 01 91-56 Available to backorder	Gasketengine Gasket Kit Contents	£5.99 £4.99
14	HV530 01 57-75 Available to backorder	Screw	£2.30 £1.92
18	HV530 02 75-93 Available to backorder	Reed	£1.68 £1.40
20	HV530 01 09-60 Available to backorder	Connecting Rod	£51.85 £43.21
22	HV530 01 51-26 Available to backorder	Key	£2.56 £2.13
26	HV530 02 75-47 Available to backorder	Lead	£1.34 £1.12
27	HV530 01 57-71 Available to backorder	Screw	£2.83 £2.36
33	HV530 01 52-41 Available to backorder	Screw	£1.56 £1.30
34	HV530 01 51-62 Available to backorder	Circlip	£2.30 £1.92
41	HV530 01 91-58 Available to backorder	Sealing Ring	£5.05 £4.21
45	HV530 02 77-81 Available to backorder	Heat Shield	£4.86 £4.05
49	HV530 03 00-58 Available to backorder	Spark Plug	£4.63 £3.86
51	HV530 03 91-34 Available to backorder	Ignition Module	£48.91 £40.76
58	HV530 02 75-69 Available to backorder	Starter Handle	£5.84 £4.87
59	HV530 06 92-32 Available to backorder	Starter Rope	£4.14 £3.45
61	HV530 09 41-89 Available to backorder	Washer	£10.26 £8.55
63	HV530 01 57-96 Available to backorder	Washer	£2.83 £2.36
64	HV530 00 17-33 Available to backorder	Nut	£1.73 £1.44
66	HV530 01 57-67 Available to backorder	Screw	£3.32 £2.77
69	HV530 01 57-69 Available to backorder	Screw	£5.02 £4.18
70	HV530 01 54-96 Available to backorder	Screw	£1.79 £1.49
71	HV530 02 75-23 Available to backorder	Retainer	£4.80 £4.00
72	HV530 01 57-68 Available to backorder	Nut	£2.69 £2.24
73	HV530 06 92-76 Available to backorder	Gasket Kit	£17.42 £14.52
