Husqvarna 327rjx - Shaft & Handle

Name: Husqvarna 327rjx - Shaft & Handle
SKU: 327rjx_shaft_handle-group
Price: 0.53 GBP
Availability: InStock

Part No. 327rjx_shaft_handle-group

Description

Husqvarna 327rjx

Model Year -

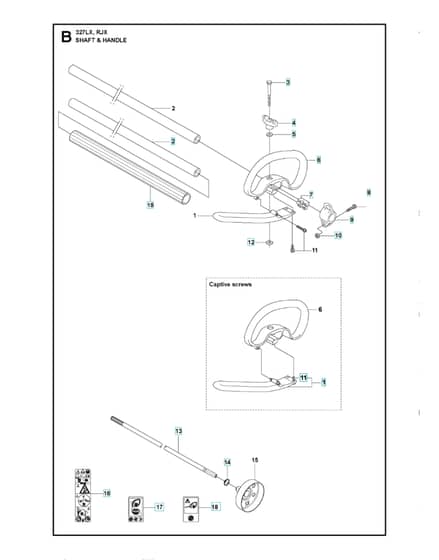

Shaft & Handle - Parts Diagram

	Part No.	Details
1	HV503 99 78-04 Available to backorder	Handlecaptive Screws	£12.31 £10.26
2	HV540 05 38-01 Available to backorder	Tube Driveshaft Assyrjx L	£59.81 £49.84
2	HV503 88 88-01 Available to backorder	Tubel	£121.44 £101.20
3	HV725 23 78-51 Available to backorder	Screw Ehhml. Ls. M6X40	£3.59 £2.99
3	HV725 23 80-51 Available to backorder	Screw Ehhmlx. Rjxm6X50	£3.66 £3.05
4	HV503 87 90-01 Available to backorder	Knoblx	£5.88 £4.90
5	HV503 23 00-61 Available to backorder	Washerl. Ls	£2.60 £2.17
6	HV503 87 19-08 Available to backorder	Handlecaptive Screws	£48.94 £40.78
7	HV503 94 03-01 Available to backorder	Distance	£6.40 £5.33
8	HV503 20 07-16 Available to backorder	Screw Ihscfmrjx	£2.05 £1.71
9	HV503 94 10-01 Available to backorder	Hookrjx	£8.34 £6.95
10	HV731 23 14-01 In stock	Hexagon Nutrjx	£1.30 £1.08
11	HV503 21 68-16 Available to backorder	Screw Ihsctrjx	£1.82 £1.52
11	HV574 18 15-01 Available to backorder	Screw Ihscftocaptive Screws	£1.56 £1.30
12	HV502 19 71-01 In stock	Square Nut	£5.15 £4.29
13	HV537 23 48-01 Available to backorder	Drive Shaftl	£58.99 £49.16
14	HV735 31 12-00 Available to backorder	Circlip	£0.64 £0.53
15	HV537 23 75-01 Available to backorder	Clutch Drum Assy	£47.76 £39.80
16	HV589 29 51-01 Available to backorder	Label	£8.98 £7.48
19	HV537 08 55-01 Available to backorder	Handlefrance	£29.47 £24.56
