Husqvarna 327 Lx - Shaft & Handle 2

Husqvarna 327 Lx - Shaft & Handle 2

Part No. 327_lx_current_shaft_handle_2-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 327 Lx - Shaft & Handle 2

Husqvarna 327 Lx - Shaft & Handle 2

Description

Husqvarna 327 Lx

Model Year - Current

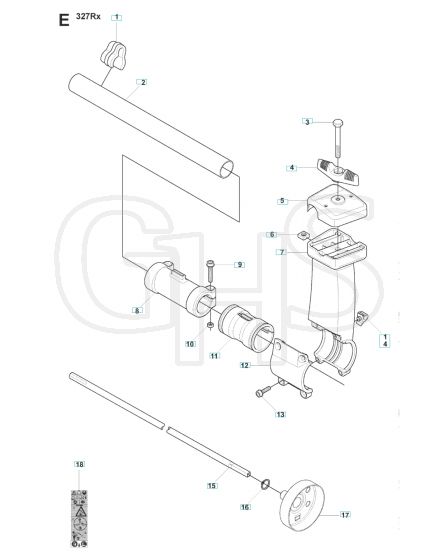

Shaft & Handle 2 - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV502 21 12-01 Available to backorder	Staple		£0.90 £0.75
	2		HV503 88 88-01 Available to backorder	Tube		£121.44 £101.20
	4		HV502 20 38-01 Available to backorder	Knob		£7.18 £5.98
	5		HV537 37 63-01 Available to backorder	Cover		£8.34 £6.95
	6		HV502 19 71-01 In stock	Square Nut		£5.15 £4.29
	8		HV537 34 88-03 Available to backorder	Compression Sleeve		£19.88 £16.57
	9		HV503 20 02-25 In stock	Screw Ihscfm		£2.35 £1.96
	10		HV731 23 14-01 In stock	Hexagon Nut		£1.30 £1.08
	12		HV537 34 87-01 Available to backorder	Hub Cap		£9.62 £8.02
	13		HV503 21 06-19 Available to backorder	Screw Ihsct		£3.29 £2.74
	14		HV502 28 61-01 Available to backorder	Clip		£0.77 £0.64
	15		HV537 23 48-01 Available to backorder	Drive Shaft		£58.99 £49.16
	16		HV735 31 12-00 Available to backorder	Circlip		£0.64 £0.53
	17		HV537 23 75-01 Available to backorder	Clutch Drum Assy		£47.76 £39.80

Description

Husqvarna 327 Lx

Model Year - Current

Shaft & Handle 2 - Parts Diagram
