Husqvarna 327 Lx - Cylinder, Piston & Muffler

Description

Husqvarna 327 Lx

Model Year - Current

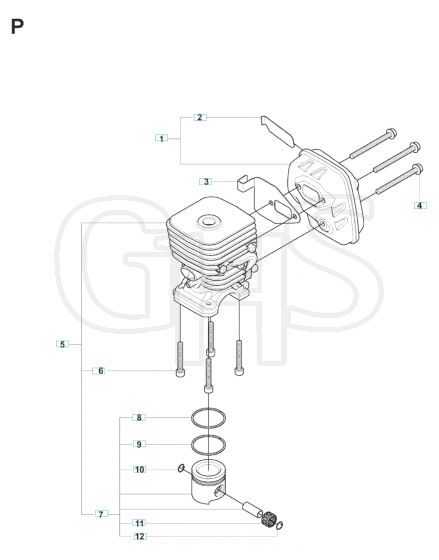

Cylinder, Piston & Muffler - Parts Diagram

	Part No.	Details
2	HV537 22 18-01 Available to backorder	Spark Arrester Screen	£5.84 £4.87
3	HV537 01 41-01 Available to backorder	Gasket	£3.31 £2.76
4	HV502 07 81-01 Available to backorder	Screw Ehhfm	£3.59 £2.99
5	HV537 08 51-03 Available to backorder	Cylinder	£183.36 £152.80
7	HV537 40 59-02 Available to backorder	Piston	£83.40 £69.50
9	HV537 40 62-01 Available to backorder	Piston Ring	£12.97 £10.81
11	HV503 71 22-01 Available to backorder	Bearing	£9.91 £8.26
12	HV737 44 08-00 Available to backorder	Circlip	£0.77 £0.64
