Husqvarna 326Lx - Carburetor Not For Us

Name: Husqvarna 326Lx - Carburetor Not For Us
SKU: 326lx_carburetor_not_for_us-group
Price: 0.96 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna 326Lx

Model Year -

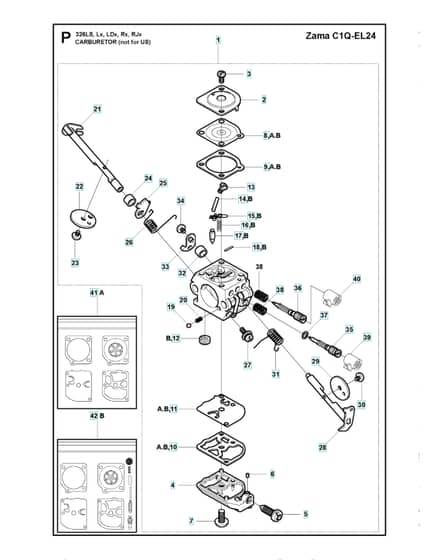

Carburetor Not For Us - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV588 17 11-56 Available to backorder	Carburettorzama C1Q-El24 (Not For Us)	£61.20 £51.00
3	HV503 48 05-01 Available to backorder	Screw	£1.56 £1.30
4	HV537 02 02-01 Available to backorder	Cover	£24.24 £20.20
5	HV537 02 07-01 Available to backorder	Screw	£1.82 £1.52
6	HV503 48 11-01 Available to backorder	Piece	£6.40 £5.33
8	HV537 04 89-01 Available to backorder	Diaphragm	£21.32 £17.77
9	HV537 02 04-01 Available to backorder	Gasket	£4.66 £3.88
10	HV537 02 01-01 Available to backorder	Gasket	£4.66 £3.88
11	HV537 02 00-01 Available to backorder	Diaphragm Pump	£15.12 £12.60
12	HV503 53 57-01 Available to backorder	Strainer	£5.26 £4.38
14	HV503 48 00-01 Available to backorder	Pin Retaining Screw	£4.68 £3.90
15	HV503 66 59-01 Available to backorder	Lever	£5.68 £4.73
17	HV503 47 97-01 Available to backorder	Valve	£14.94 £12.45
18	HV537 02 08-01 Available to backorder	Plug	£3.89 £3.24
21	HV537 02 09-01 Available to backorder	Shaft Assy	£22.78 £18.98
22	HV537 37 03-01 Available to backorder	Valve	£7.39 £6.16
23	HV503 48 18-01 Available to backorder	Screw	£1.28 £1.07
24	HV503 48 19-01 Available to backorder	Collar	£7.76 £6.47
25	HV537 04 90-01 Available to backorder	Lever	£5.68 £4.73
26	HV537 02 10-01 Available to backorder	Spring	£3.36 £2.80
27	HV503 75 53-01 Available to backorder	Screw	£1.15 £0.96
29	HV537 01 99-01 Available to backorder	Valve	£5.88 £4.90
30	HV503 47 92-01 Available to backorder	Screw	£1.28 £1.07
31	HV537 01 97-01 Available to backorder	Spring	£2.72 £2.27
33	HV537 01 98-01 Available to backorder	Lever	£6.98 £5.82
34	HV503 47 90-01 Available to backorder	Screw	£1.28 £1.07
36	HV537 12 78-01 Available to backorder	Screw	£24.92 £20.77
37	HV503 97 40-01 Available to backorder	Washer	£2.34 £1.95
38	HV503 48 08-01 Available to backorder	Spring	£3.48 £2.90
40	HV537 02 16-01 Available to backorder	Limiter Cap	£2.48 £2.07
41	HV531 00 45-52 Available to backorder	Gasket Kit	£12.84 £10.70
42	HV531 00 45-53 Available to backorder	Gasket Kit	£15.86 £13.22
