Husqvarna 326HE3X-SERIES - Gear Housing

Name: Husqvarna 326HE3X-SERIES - Gear Housing
SKU: 326he3x_series_gear_housing-group
Price: 0.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna 326HE3X-SERIES

Model Year - - 20090900001-Current

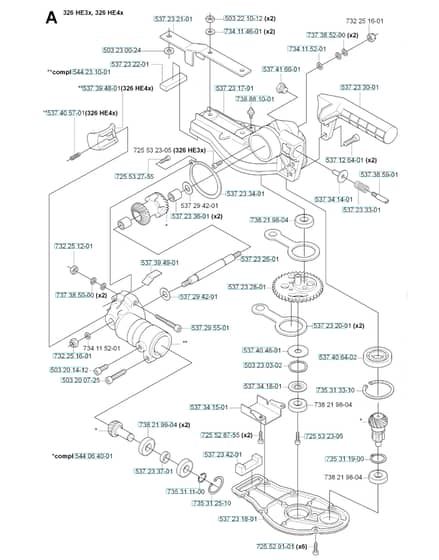

Gear Housing - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
503	HV503 20 14-12 Available to backorder	Screw Ihscfmo	£1.82 £1.52
503	HV503 23 03-02 Available to backorder	Washer	£12.68 £10.57
503	HV503 22 10-12 Available to backorder	Hexagon Nut	£1.76 £1.47
503	HV503 20 07-25 Available to backorder	Screw Ihscfm	£2.34 £1.95
503	HV503 23 00-24 Available to backorder	Washer	£2.28 £1.90
537	HV537 23 36-01 Available to backorder	Needle Bearing	£11.26 £9.38
537	HV537 34 14-01 Available to backorder	Stop	£13.76 £11.47
537	HV537 38 59-01 Available to backorder	Pen	£5.04 £4.20
537	HV537 40 48-01 Available to backorder	Washer	£3.12 £2.60
537	HV537 41 66-01 Available to backorder	Plug	£16.38 £13.65
537	HV537 23 18-01 Available to backorder	Hub Cap	£45.84 £38.20
537	HV537 23 26-01 Available to backorder	Shaft	£15.84 £13.20
537	HV537 23 33-01 Available to backorder	Spring	£3.48 £2.90
537	HV537 23 37-01 Available to backorder	Spacer	£2.72 £2.27
537	HV537 34 15-01 Available to backorder	Guide Plate	£7.12 £5.93
537	HV537 39 48-01 Available to backorder	Button	£6.42 £5.35
537	HV537 40 57-01 Available to backorder	Spring	£3.36 £2.80
537	HV537 12 64-01 Available to backorder	Screw	£2.15 £1.79
537	HV537 23 20-01 In stock	Connecting Rod	£11.98 £9.98
537	HV537 23 28-01 Available to backorder	Gear Wheel	£54.68 £45.57
537	HV537 23 34-01 Available to backorder	Stop	£7.86 £6.55
537	HV537 29 55-01 Available to backorder	Screw	£24.58 £20.48
537	HV537 34 18-01 Available to backorder	Washer	£2.58 £2.15
537	HV537 39 49-01 Available to backorder	Sealing	£4.20 £3.50
537	HV537 40 64-02 Available to backorder	Ball Bearing	£7.08 £5.90
537	HV537 23 17-01 Available to backorder	Gear Housing	£101.34 £84.45
537	HV537 23 21-01 Available to backorder	Baseplate	£14.22 £11.85
537	HV537 23 30-01 Available to backorder	Handle	£13.58 £11.32
544	HV544 06 40-01 Available to backorder	Gear Wheel	£208.08 £173.40
544	HV544 23 10-01 Available to backorder	Housing Assy	£132.86 £110.72
725	HV725 52 87-55 Available to backorder	Screw Ihscm	£1.28 £1.07
725	HV725 53 27-55 Available to backorder	Screw Ihscm	£1.56 £1.30
725	HV725 52 91-01 In stock	Screw Ihscm	Was £1.51 £1.26 Special Price £0.96 £0.80
725	HV725 53 23-05 Available to backorder	Screw Ihscm	£1.56 £1.30
732	HV732 25 12-01 Available to backorder	Hexagon Locking Nut	£1.37 £1.14
732	HV732 25 16-01 Available to backorder	Hexagon Locking Nut	£2.06 £1.72
734	HV734 11 46-01 Available to backorder	Washer	£2.34 £1.95
734	HV734 11 52-01 Available to backorder	Washer	£2.34 £1.95
735	HV735 31 19-00 Available to backorder	Circlip	£0.77 £0.64
735	HV735 31 25-10 Available to backorder	Circlip	£0.77 £0.64
735	HV735 31 11-00 Available to backorder	Circlip	£0.77 £0.64
735	HV735 31 33-10 Available to backorder	Circlip	£0.92 £0.77
737	HV737 38 50-00 Available to backorder	Disc Spring	£3.36 £2.80
737	HV737 38 52-00 Available to backorder	Disc Spring	£3.36 £2.80
738	HV738 21 99-04 Available to backorder	Ball Bearing	£6.36 £5.30
738	HV738 88 10-01 Available to backorder	Lubrication Nipple	£11.00 £9.17
738	HV738 21 98-04 Available to backorder	Ball Bearing	£6.36 £5.30
