Husqvarna 325RJX - 2008-Current - Ignition System & Clutch

Description

Husqvarna 325RJX

Model Year - 2008-Current

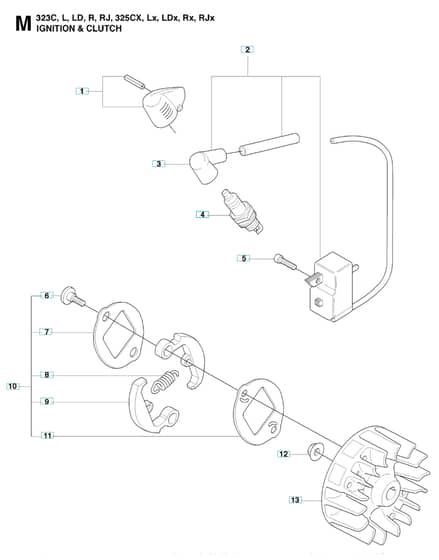

Ignition System & Clutch - Parts Diagram

	Part No.	Details
1	HV537 04 58-01 Available to backorder	Cover	£5.89 £4.91
2	HV537 41 87-01 Available to backorder	Ignition Module	£52.16 £43.47
3	HV537 23 96-01 Available to backorder	Spark Plug Cap	£8.06 £6.72
4	HV503 23 51-08 In stock	Spark Plug	£3.60 £3.00
4	HV503 23 51-11 In stock	Spark Plug	£2.80 £2.33
5	HV503 21 71-16 Available to backorder	Screw Ihsct	£1.54 £1.28
6	HV503 84 29-02 Available to backorder	Screw	£2.56 £2.13
7	HV537 04 67-02 Available to backorder	Washer	£4.86 £4.05
8	HV503 81 60-01 Available to backorder	Clutch Spring	£5.99 £4.99
9	HV503 84 28-01 Available to backorder	Clutch Shoe	£14.93 £12.44
10	HV537 03 22-01 Available to backorder	Clutch Assy	£60.36 £50.30
11	HV537 04 68-02 Available to backorder	Washer	£4.86 £4.05
12	HV731 71 16-51 Available to backorder	Hexagon Nut Flange	£2.94 £2.45
13	HV537 24 96-02 Available to backorder	Flywheel	£60.98 £50.82
