Husqvarna 325RJX - 2008-Current - Carburetor & Air Filter

Name: Husqvarna 325RJX - 2008-Current - Carburetor & Air Filter
SKU: 325rjx_2008_current_carburetor_air_filter-group
Price: 1.08 GBP
Availability: InStock

Part No. 325rjx_2008_current_carburetor_air_filter-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 325RJX - 2008-Current - Carburetor & Air Filter

Description

Husqvarna 325RJX

Model Year - 2008-Current

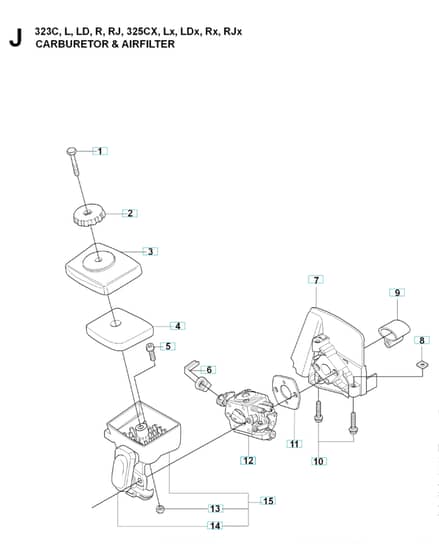

Carburetor & Air Filter - Parts Diagram

	Part No.	Details
1	HV502 20 65-03 Available to backorder	Screw Ehhm	£1.98 £1.65
2	HV502 20 40-01 In stock	Knob	£6.22 £5.18
3	HV503 88 80-02 In stock	Filter Cover	Was £7.56 £6.30 Special Price £5.45 £4.54
4	HV537 18 63-01 In stock	Air Filter	£8.44 £7.03
5	HV503 21 75-16 Available to backorder	Screw Ihscft	£1.82 £1.52
6	HV503 96 25-01 Available to backorder	Choke Control	£6.52 £5.43
7	HV503 91 09-01 Available to backorder	Insulation Wall	£12.82 £10.68
8	HV503 22 65-04 Available to backorder	Square Nut	£2.28 £1.90
9	HV503 94 26-01 Available to backorder	Inlet Pipe	£10.26 £8.55
10	HV503 20 03-25 Available to backorder	Screw Ihscfm	£2.30 £1.92
11	HV503 49 71-01 Available to backorder	Gasket	£2.99 £2.49
12	HV588 17 11-56 Available to backorder	Carburettorzama C1Q-El24. Not For Us	£52.51 £43.76
12	HV576 01 98-01 Available to backorder	Carburettorhualong Hq-2. Only Option For Us	£60.49 £50.41
13	HV731 23 14-01 In stock	Hexagon Nut	£1.30 £1.08
14	HV503 88 79-01 Available to backorder	Hub Cap	£4.24 £3.53
15	HV503 89 03-01 Available to backorder	Filter Holder	£10.24 £8.53
