Husqvarna 325RDx - Starter

Name: Husqvarna 325RDx - Starter
SKU: 325rdx_starter-group
Price: 0.65 GBP
Availability: InStock

Part No. 325rdx_starter-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna 325RDx

Model Year -

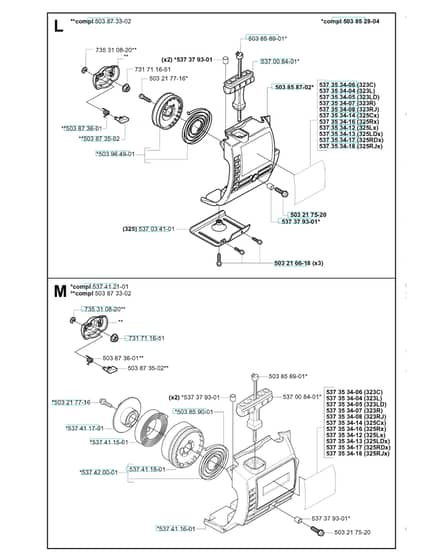

Starter - Parts Diagram

	Part No.	Details
503	HV503 21 75-20 Available to backorder	Screw Ihscft	£2.05 £1.71
503	HV503 85 90-01 Available to backorder	Recoil Spring	£12.52 £10.43
503	HV503 96 49-01 Available to backorder	Starter Pulley	£11.81 £9.84
503	HV503 21 77-16 Available to backorder	Screw Ihsct	£2.05 £1.71
503	HV503 87 35-02 Available to backorder	Starter Pawl	£4.09 £3.41
503	HV503 21 66-18 Available to backorder	Screw Ihsct	£1.79 £1.49
503	HV503 85 89-01 Available to backorder	Starter Rope	£5.18 £4.32
503	HV503 87 36-01 Available to backorder	Spring	£3.40 £2.83
537	HV537 35 34-12 Available to backorder	Label325Lx	£2.94 £2.45
537	HV537 41 17-01 Available to backorder	Starter Pulley	£5.46 £4.55
537	HV537 35 34-04 Available to backorder	Label323L	£2.94 £2.45
537	HV537 35 34-07 Available to backorder	Label323R	£2.94 £2.45
537	HV537 35 34-18 Available to backorder	Label325Rjx	£2.94 £2.45
537	HV537 41 18-01 Available to backorder	Starter Pulley	£7.14 £5.95
537	HV537 00 84-01 Available to backorder	Starter Handle	£9.08 £7.57
537	HV537 35 34-05 Available to backorder	Label323Ld	£2.94 £2.45
537	HV537 35 34-08 Available to backorder	Label323Rj	£2.94 £2.45
537	HV537 41 16-01 Available to backorder	Starter Housing	£25.64 £21.37
537	HV537 42 00-01 Available to backorder	Starter Pulley Assy	£17.51 £14.59
537	HV537 03 41-01 Available to backorder	Protective Plate	£10.26 £8.55
537	HV537 35 34-06 Available to backorder	Label323C	£2.94 £2.45
731	HV731 71 16-51 Available to backorder	Hexagon Nut Flange	£2.94 £2.45
735	HV735 31 08-20 Available to backorder	E-Clip	£0.78 £0.65
