Husqvarna 325R - Shaft & Handle

Name: Husqvarna 325R - Shaft & Handle
SKU: 325r_shaft_handle-group
Price: 0.75 GBP
Availability: InStock

Part No. 325r_shaft_handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna 325R

Model Year -

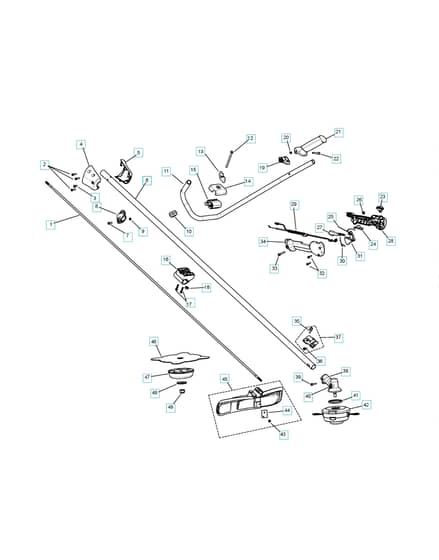

Shaft & Handle - Parts Diagram

	Part No.	Details
1	HV581 11 05-01 Available to backorder	Drive Shaftdriveshaft	£102.84 £85.70
3	HV584 29 40-01 Available to backorder	Screw Itxpantscrew	£1.56 £1.30
7	HV525 75 51-01 Available to backorder	Screw Itxscfmscrew Itxscfm	£1.97 £1.64
8	HV503 94 10-01 Available to backorder	Hookhook	£8.34 £6.95
10	HV502 21 12-01 Available to backorder	Staplethrottle Cable Clip	£0.90 £0.75
11	HV502 19 95-03 Available to backorder	Handlebarhandle Bar	£42.94 £35.78
12	HV725 23 86-51 Available to backorder	Screw Ehhmscrew M6 X 80 10.9	£6.01 £5.01
13	HV502 20 38-01 Available to backorder	Knobknob	£7.18 £5.98
14	HV503 72 29-01 Available to backorder	Covercover	£8.98 £7.48
15	HV544 02 09-03 Available to backorder	Cliphandlebar Bracket	£10.26 £8.55
17	HV512 84 81-01 Available to backorder	Screwscrew	£1.79 £1.49
18	HV502 19 71-01 In stock	Square Nutsquare Nut	£5.15 £4.29
19	HV537 17 29-01 Available to backorder	Covercover	£5.78 £4.82
20	HV731 23 14-01 In stock	Hexagon Nuthex Nut	£1.30 £1.08
21	HV537 17 28-01 Available to backorder	Handlehandle Grip	£13.46 £11.22
22	HV525 75 52-04 Available to backorder	Screw Itxscfmscrew	£2.83 £2.36
23	HV537 41 90-01 In stock	Switchswitch	£15.30 £12.75
24	HV537 16 07-03 Available to backorder	Throttle Lockoutstarter Throttle Loc	£6.46 £5.38
25	HV537 17 43-01 Available to backorder	Springspring	£3.31 £2.76
26	HV503 22 10-13 Available to backorder	Hexagon Nuthexagon Nut	£2.09 £1.74
28	HV537 16 02-09 Available to backorder	Handle Halfhandle Half	£21.78 £18.15
29	HV580 29 43-01 Available to backorder	Cable Assycable Assy	£29.75 £24.79
30	HV537 17 42-01 Available to backorder	Spring Throttle Trigspring Throttle Trig	£3.12 £2.60
31	HV506 49 50-01 Available to backorder	Throttle Controlthrottle Control	£8.34 £6.95
33	HV503 20 07-82 Available to backorder	Screw Ihscfmscrew Ihscfm	£1.28 £1.07
34	HV537 16 03-02 Available to backorder	Handle Halfhandle Half	£21.78 £18.15
38	HV537 33 38-01 Available to backorder	Bevel Geargear Head	£102.12 £85.10
39	HV525 75 51-04 In stock	Screw Itxscfmscrew Itxscfm	£1.56 £1.30
40	HV503 20 15-01 Available to backorder	Screwgrease Plug	£5.42 £4.52
41	HV537 23 49-01 In stock	Driver Assydriver Disc	£35.77 £29.81
42	HV578 44 63-01 Available to backorder	Trimmer Headhead Trimmer T35	£32.48 £27.07
44	HV503 79 88-02 Available to backorder	Bladeblade	£7.18 £5.98
45	HV588 11 79-01 Available to backorder	Combination Guardguard Assy Trimmer	£35.17 £29.31
47	HV503 89 01-01 In stock	Support Cupcup Support	£7.48 £6.23
48	HV537 28 56-01 In stock	Support Flangeflange Support	£12.35 £10.29
49	HV503 85 63-01 In stock	Nutlocknut Blade	£4.88 £4.07
