Husqvarna 325Ldx - Shaft & Handle

Husqvarna 325Ldx - Shaft & Handle

Part No. 325ldx_shaft_handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 325Ldx - Shaft & Handle

Husqvarna 325Ldx - Shaft & Handle

Description

Husqvarna 325Ldx

Model Year -

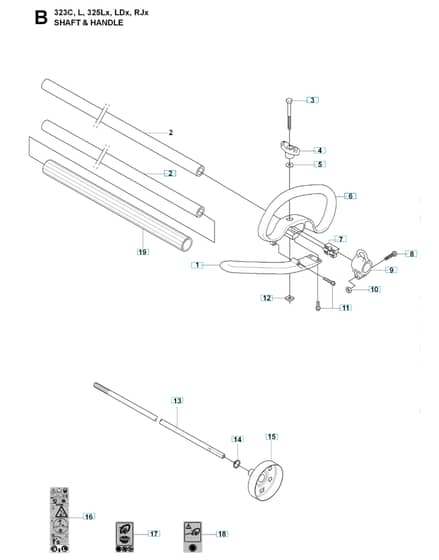

Shaft & Handle - Parts Diagram

Ref.		Img.	Part No.	Details
	2		HV503 88 88-01 Available to backorder	Tube		£121.44 £101.20
	2		HV540 05 38-01 Available to backorder	Tube Driveshaft Assy		£59.81 £49.84
	3		HV725 23 78-51 Available to backorder	Screw Ehhm		£3.59 £2.99
	3		HV725 23 80-51 Available to backorder	Screw Ehhm		£3.66 £3.05
	4		HV503 87 90-01 Available to backorder	Knob		£5.88 £4.90
	5		HV503 23 00-61 Available to backorder	Washer		£2.60 £2.17
	7		HV503 94 03-01 Available to backorder	Distance		£6.40 £5.33
	8		HV503 20 07-16 Available to backorder	Screw Ihscfm		£2.05 £1.71
	9		HV503 94 10-01 Available to backorder	Hook		£8.34 £6.95
	10		HV731 23 14-01 In stock	Hexagon Nut		£1.30 £1.08
	11		HV503 21 68-16 Available to backorder	Screw Ihsct		£1.82 £1.52
	12		HV502 19 71-01 In stock	Square Nut		£5.15 £4.29
	13		HV537 23 48-01 Available to backorder	Drive Shaft		£58.99 £49.16
	14		HV735 31 12-00 Available to backorder	Circlip		£0.64 £0.53
	15		HV537 23 75-01 Available to backorder	Clutch Drum Assy		£47.76 £39.80
	19		HV537 08 55-01 Available to backorder	Handle		£29.47 £24.56

Description

Husqvarna 325Ldx

Model Year -

Shaft & Handle - Parts Diagram
